Surface Hub Packs - AB-61

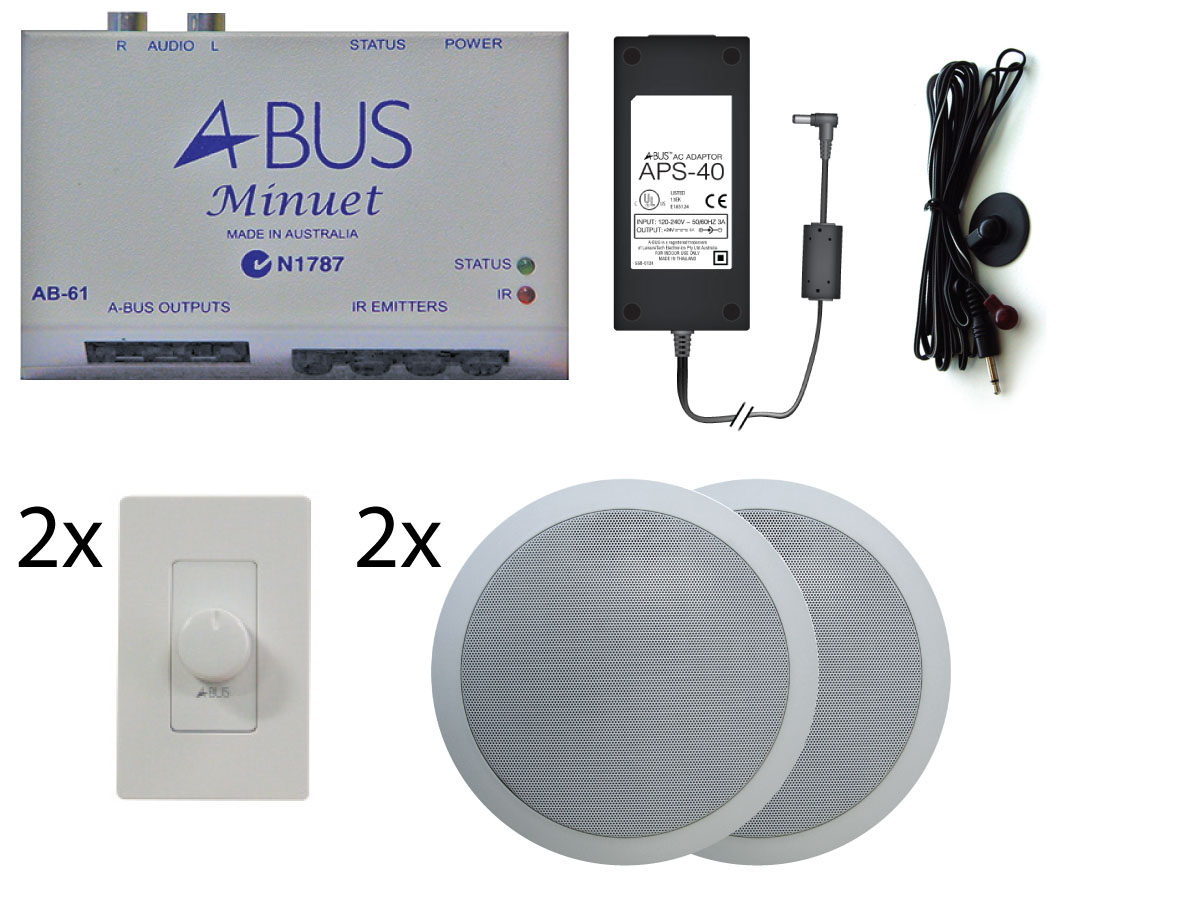

AB-61/220 Single Source Dual Room Kit

AB-61/220
Single-Source Dual Room Kit

Inputs: 1 source
Output: 1 zone, 2 room
Modules: 2 x AB-20 in-wall
Speakers: 2 x ABP-C6 6.5” in-ceiling
Emitter: 1 x IRE-110
Power: A-BUS power supply included

For Australian sale only. International kits are available.

wiring diagram hires image horizontal rule AB-61/220-alf Single-Source Dual Room Kit

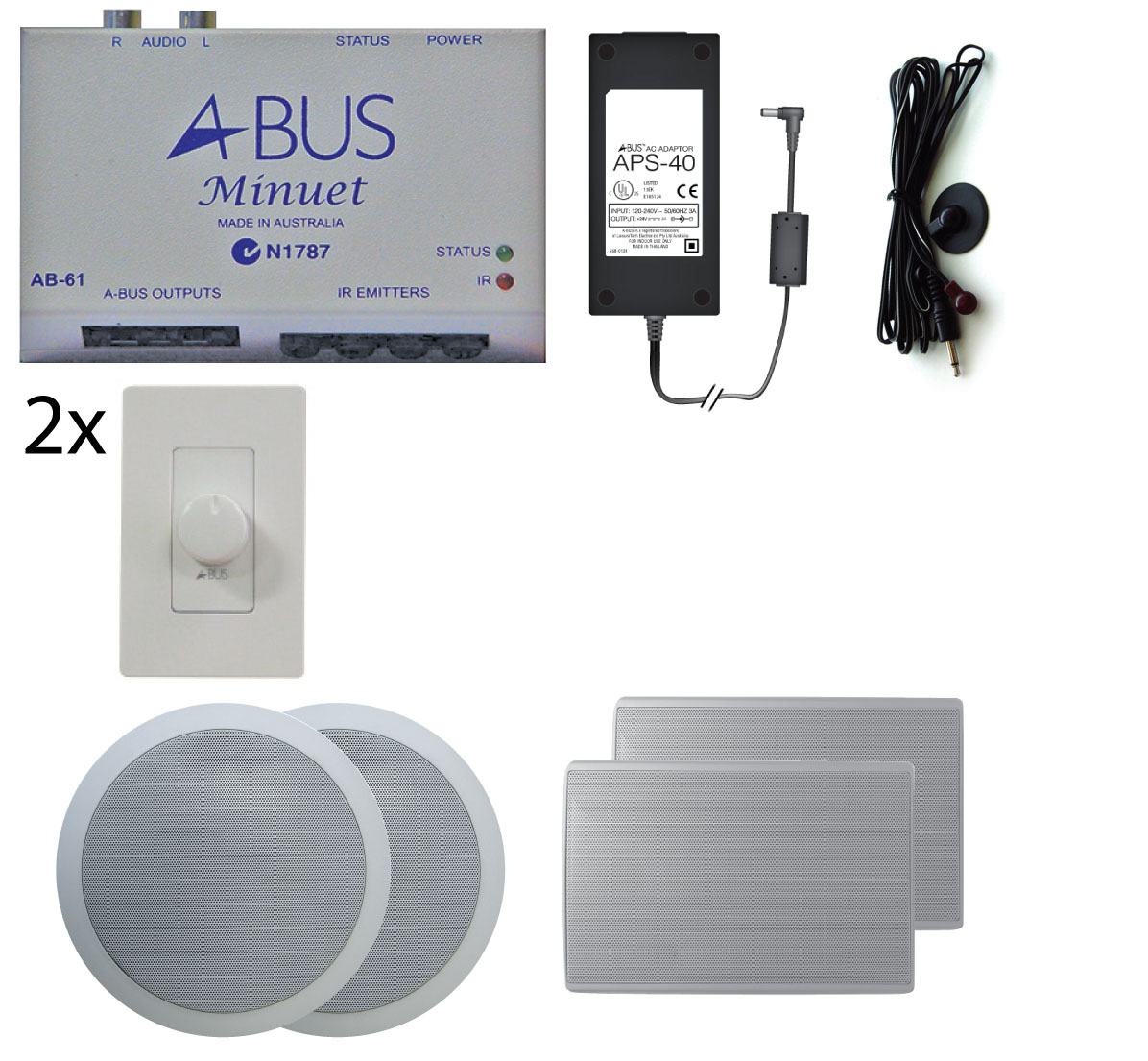

AB-61/220-ALF
Single-Source Dual Room Kit

Inputs: 1 source
Output: 1 zone, 2 room
Modules: 2 x AB-20 in-wall
Speakers: 1 x ABP-C6 6.5” in-ceiling 1 x ABP-W5 wall
Emitter: 1 x IRE-110
Power: A-BUS power supply included

For Australian sale only. International kits are available.

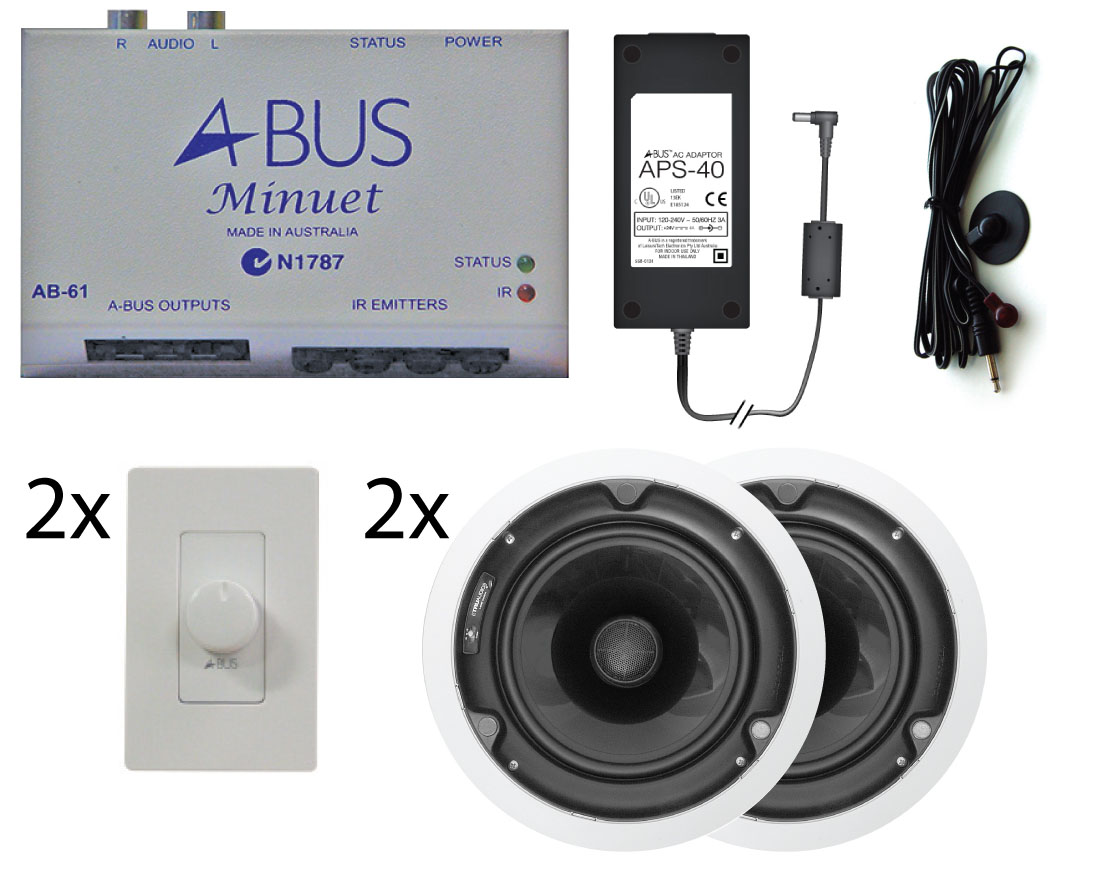

wiring diagram hires image horizontal rule AB-61/2208 Single Source Dual Room Kit

AB-61/2208
Single-Source Dual Room Kit

Inputs: 1 source
Output: 1 zone, 2 room
Modules: 2 x AB-20 in-wall
Speakers: 2 x CP-8
Emitter: 1 x IRE-110
Power: A-BUS power supply included

For Australian sale only. International kits are available.

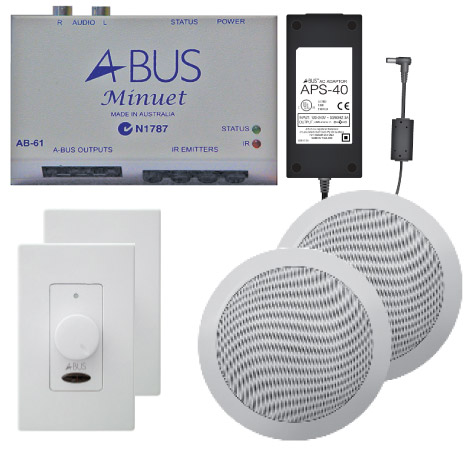

wiring diagram hires image horizontal rule AB-61/239 Single Source Dual Room Kit

AB-61/239
Single-Source Dual Room Kit

Inputs: 1 source
Output: 1 zone, 2 room
Modules: 2 x AB-39 in-wall
Speakers: 2 x ABP-C6 6.5” in-ceiling
Emitter: 1 x IRE-110
Power: A-BUS power supply included

For Australian sale only. International kits are available.

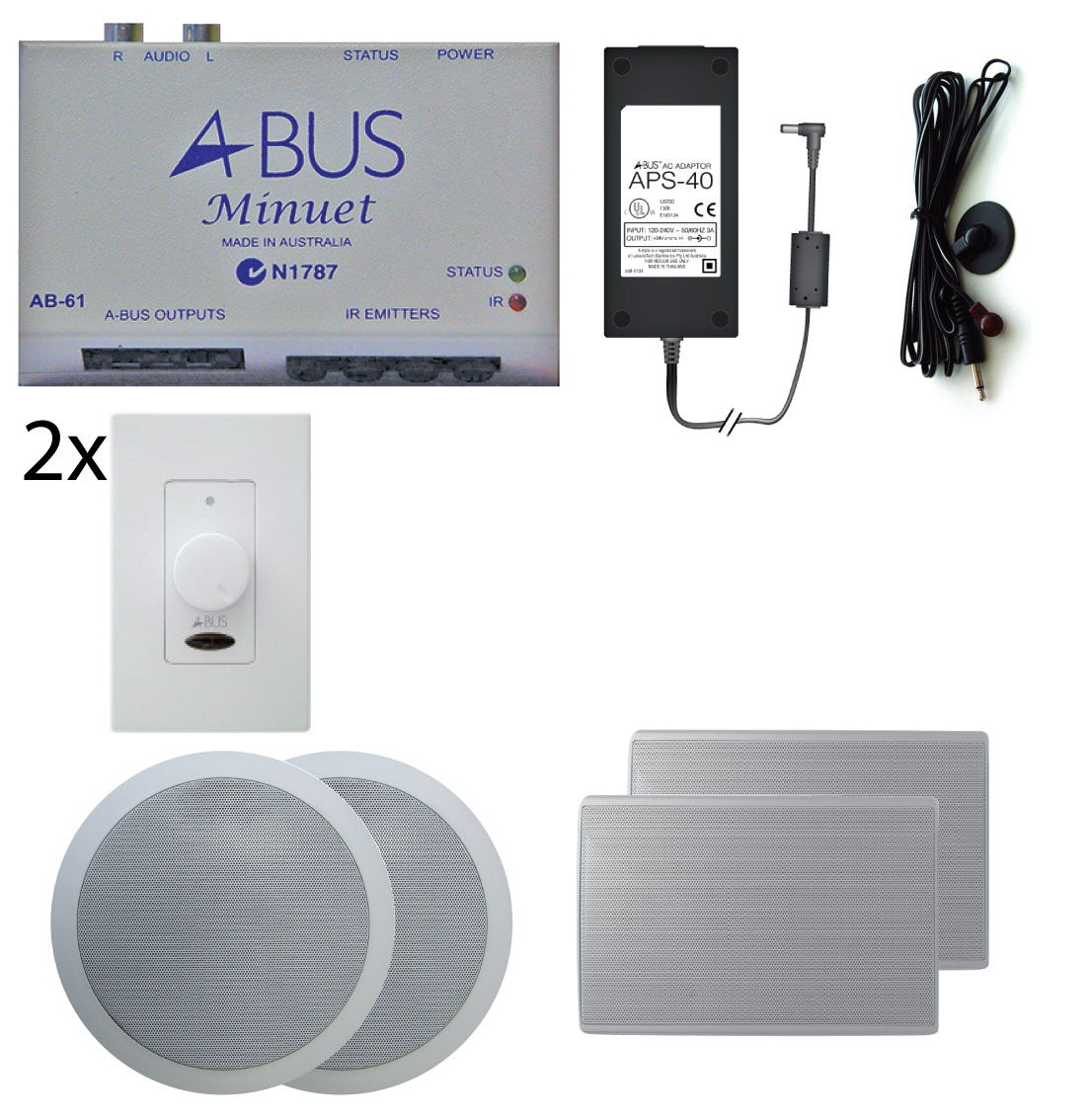

wiring diagram hires image horizontal rule AB-61/239-ALF Single Source Dual Room Kit

AB-61/239-ALF
Single-Source Dual Room Kit

Inputs: 1 source
Output: 1 zone, 2 room
Modules: 2 x AB-39 in-wall
Speakers: 1 x ABP-C6 6” in-ceiling 1 x ABP-W5 wall
Emitter: 1 x IRE-110 Power: 1 X APS-40
Power: A-BUS power supply included

For Australian sale only. International kits are available.

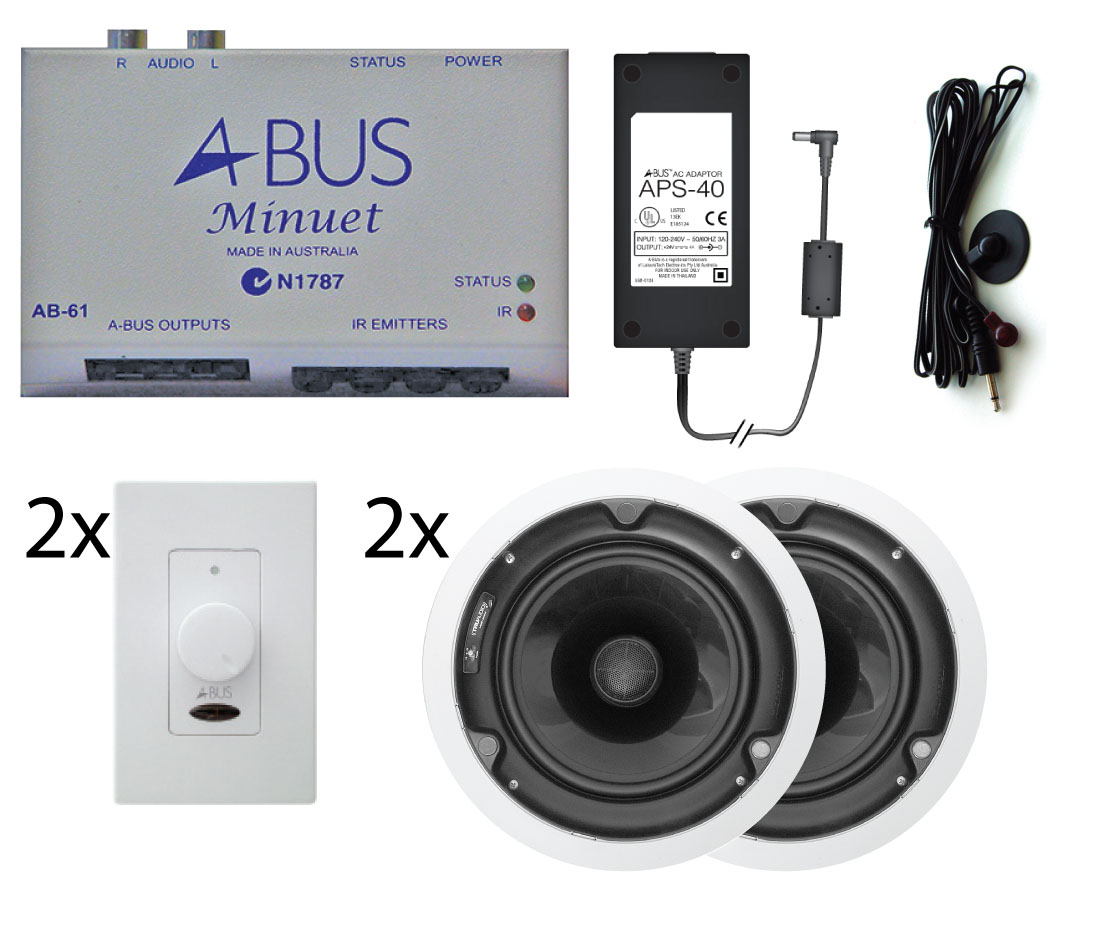

wiring diagram hires image horizontal rule AB-61/2398 Single Source Dual Room Kit

AB-61/2398
Single-Source Dual Room Kit

Inputs: 1 source
Output: 1 zone, 2 room
Modules: 2 x AB-20 in-wall
Speakers: 2 x ABP-C6 6.5” in-ceiling
Emitter: 1 x IRE-110
Power: A-BUS power supply included

For Australian sale only. International kits are available.

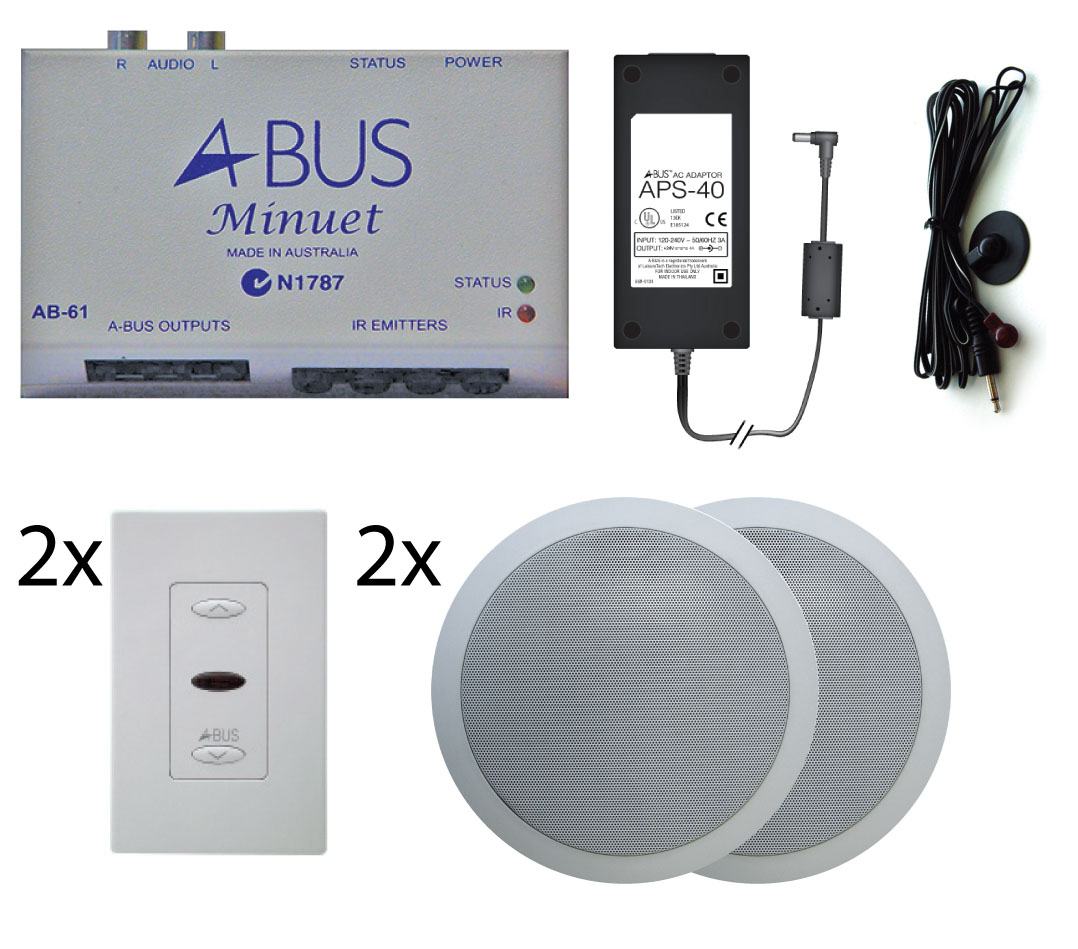

wiring diagram hires image horizontal rule AB-61/243 Single Source Dual Room Kit

AB-61/243
Single-Source Dual Room Kit

Inputs: 1 source
Output: 1 zone, 2 room
Modules: 2 x AB-43 in-wall
Speakers: 2 x ABP-C6 6.5” in-ceiling
Emitter: 1 x IRE-110
Power: A-BUS power supply included

For Australian sale only. International kits are available.

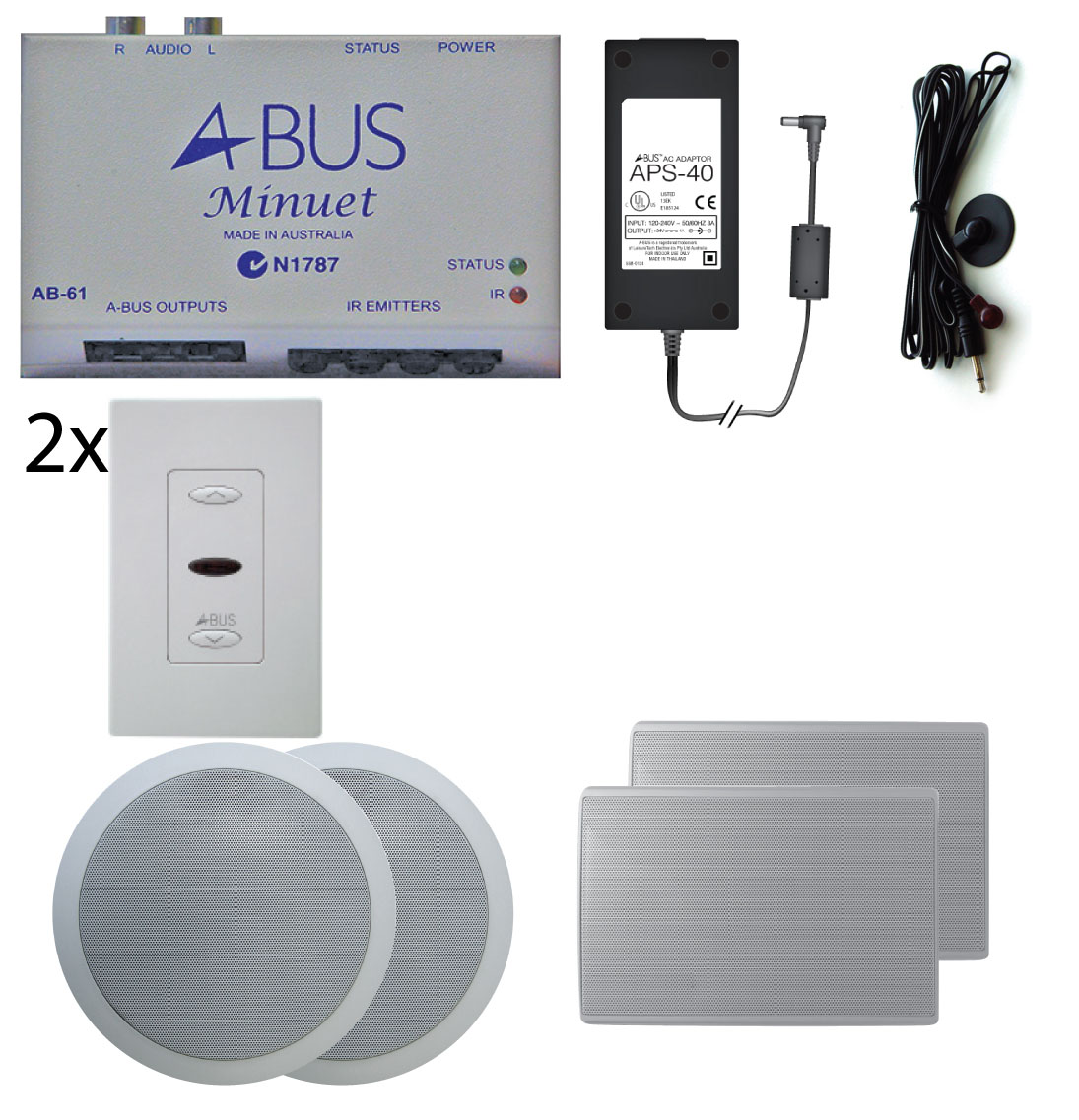

wiring diagram hires image horizontal rule AB-61/243-ALF Single Source Dual Room Kit

AB-61/243-ALF
Single-Source Dual Room Kit

Inputs: 1 source
Output: 1 zone, 2 room
Modules: 2 x AB-43 in-wall
Speakers: 1 x ABP-C6 6.5” in-ceiling
1 x ABP-W5 wall
Emitter: 1 x IRE-110
Power: A-BUS power supply included

For Australian sale only. International kits are available.

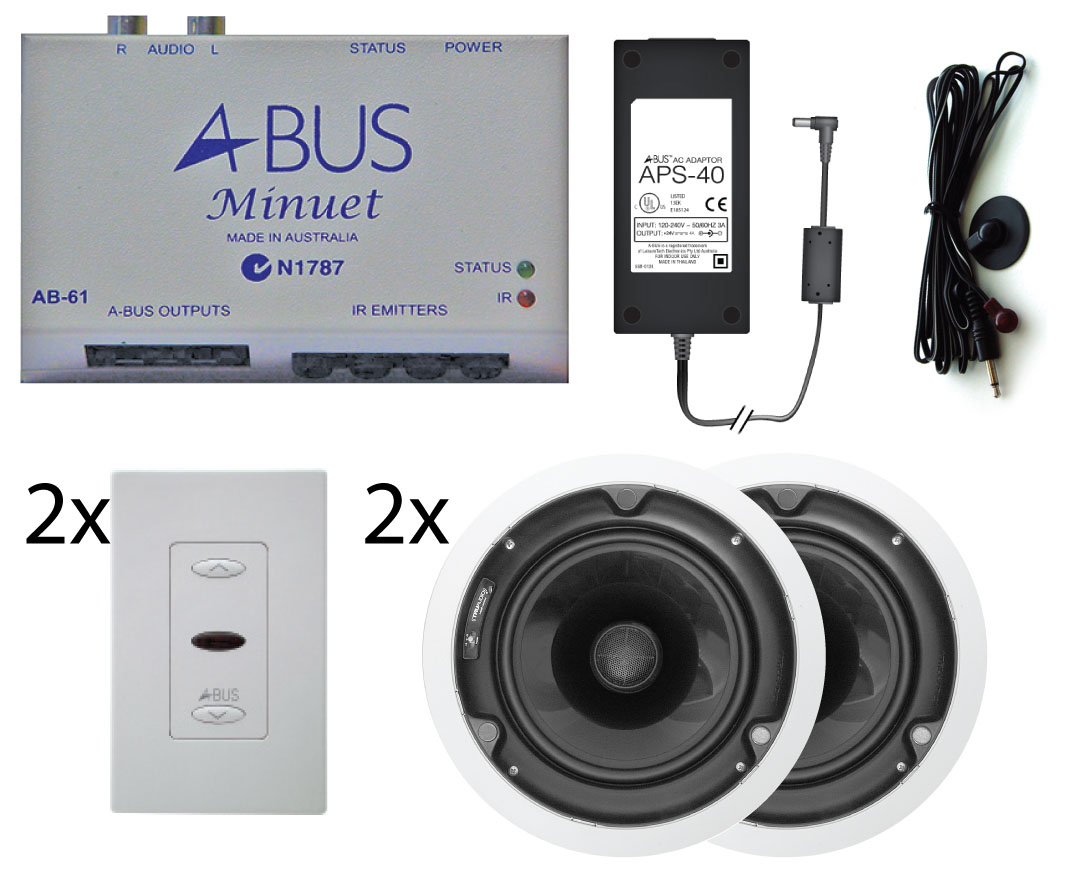

wiring diagram hires image horizontal rule AB-61/2438 Single Source Dual Room Kit

AB-61/2438
Single-Source Dual Room Kit

Inputs: 1 source
Output: 1 zone, 2 room
Modules: 2 x AB-43 in-wall
Speakers:2 x CP-8
Emitter: 1 x IRE-110
Power: A-BUS power supply included

For Australian sale only. International kits are available.

wiring diagram hires image horizontal rule
