Forté Intercom

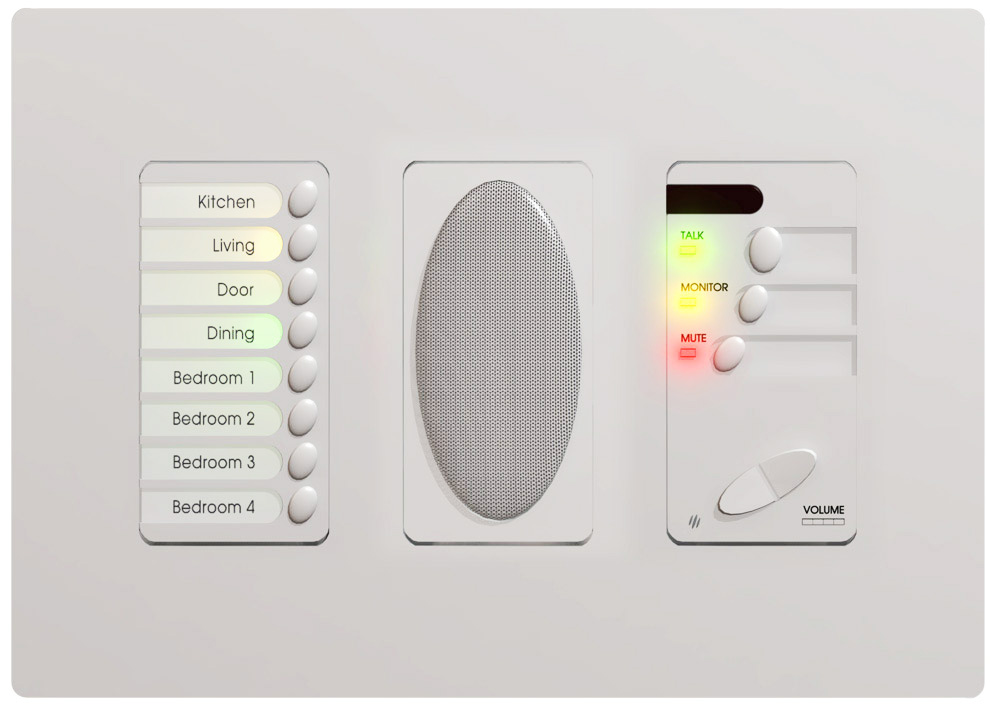

ABI-16
Forté /Intercom Control Centre
CONTROL: Talk, monitor, mute, volume up / down, room selector
SPEAKER: Built-in 40 mm
TERMINAL: Cat-5 110 punch down
SIZE: Profile 30mm, mounting depth: 31mm
PLATE SIZE: 163 x 116 mm (WH)
Supplied with triple gang screwless wall plate

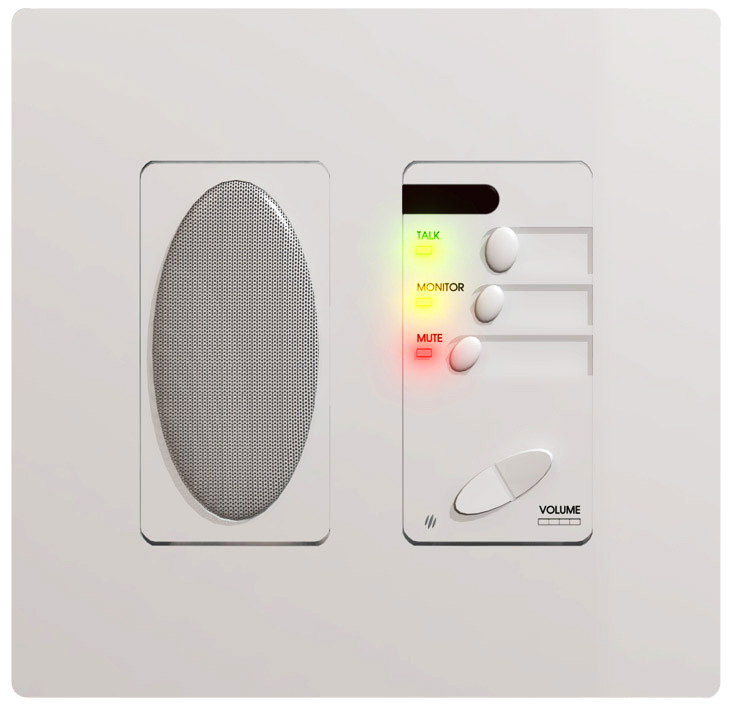

ABI-15
Forté /Intercom Mini Master
CONTROL: Talk, monitor, mute, volume up / down
SPEAKER: Built-in 40 mm
TERMINAL: Cat-5 110 punch down
SIZE: Profile 30mm, mounting depth: 31mm
PLATE SIZE: 115 x 116 mm (WH)
Supplied with double gang screwless wall plate

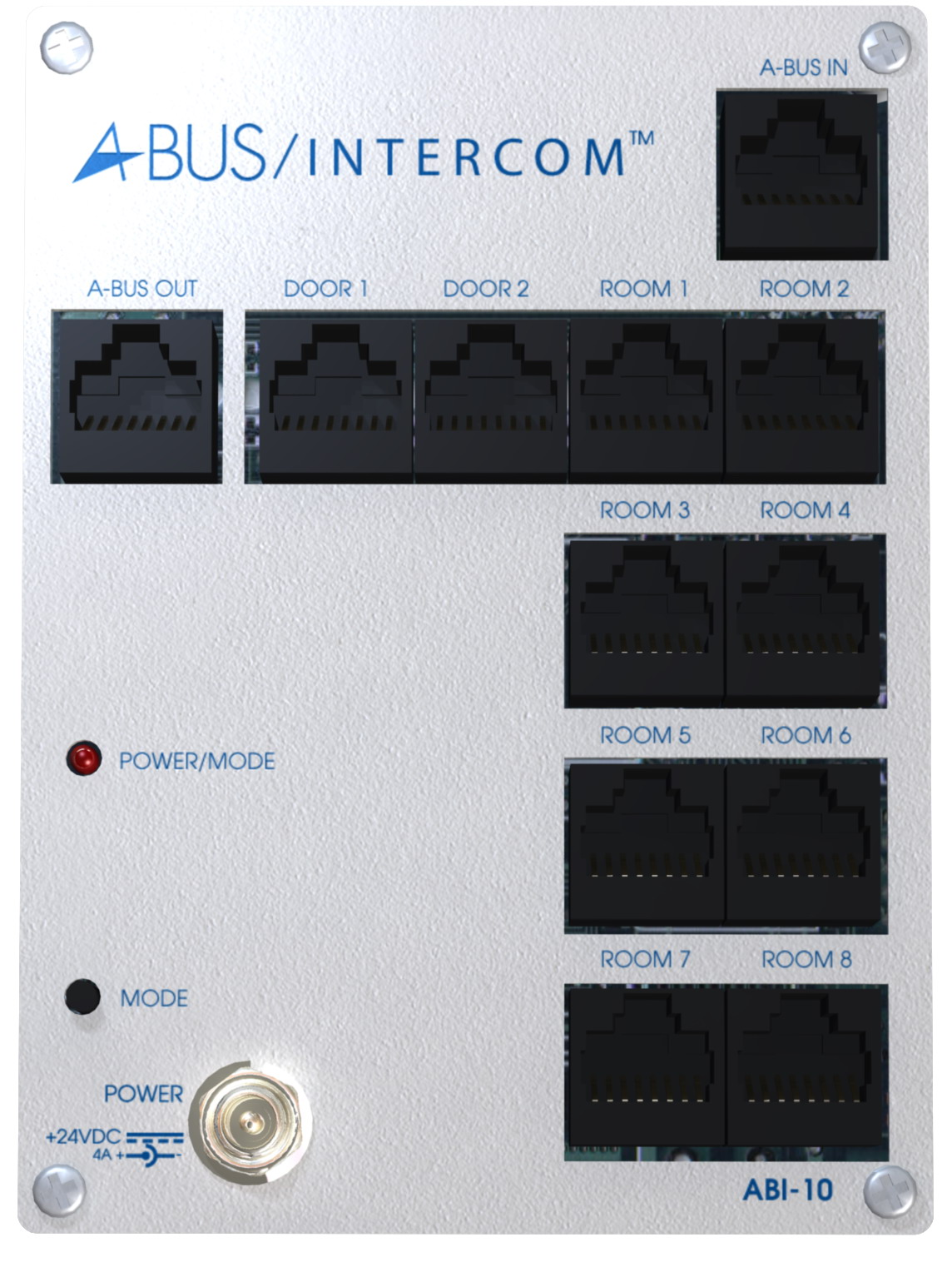

ABI-10
Forté /Intercom System Hub
FEATURES: Drives up to 8 rooms / 2 doors
A-BUS audio input / output
STATUS: Audio interrupt
CHIMES: 6 selectable
TERMINALS: RJ-45
2 x door station
8 x room station
2 x A-BUS audio
DIMENSIONS: 89 x 122 x 17 mm (WHD)
MOUNTING: Structured wiring panel
POWER: APS-40

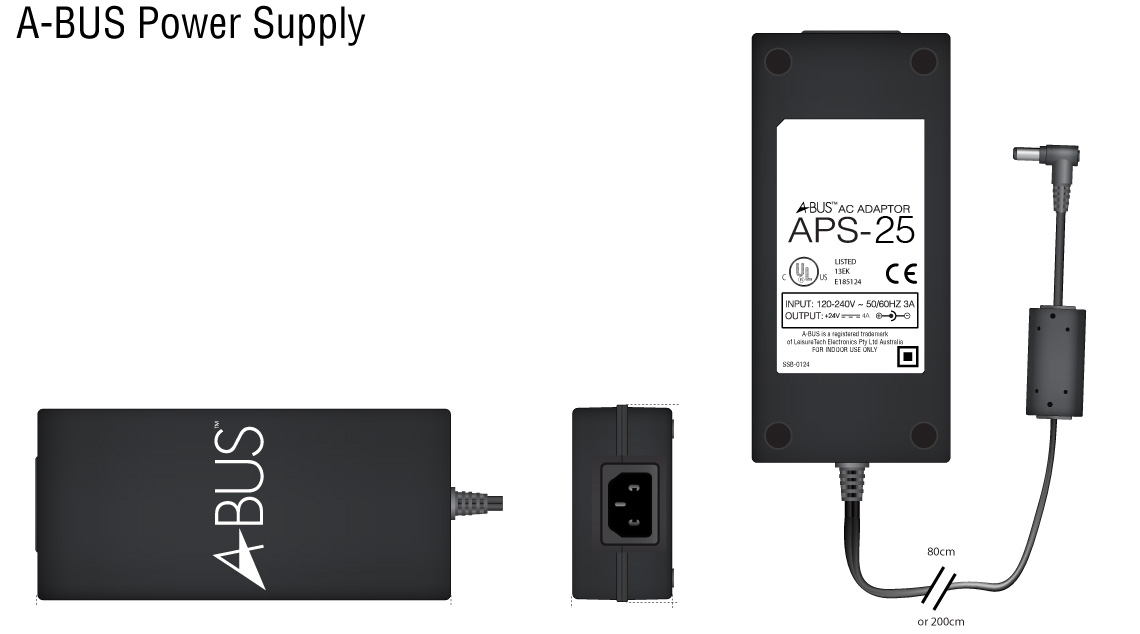

APS-25
Power Supply 2.5A
INPUTS: 100-240v 50/60 Hz
OUTPUTS: 24VDC 2.5 Amp
SIZE: 123 x 47 x 30 mm (WHD)

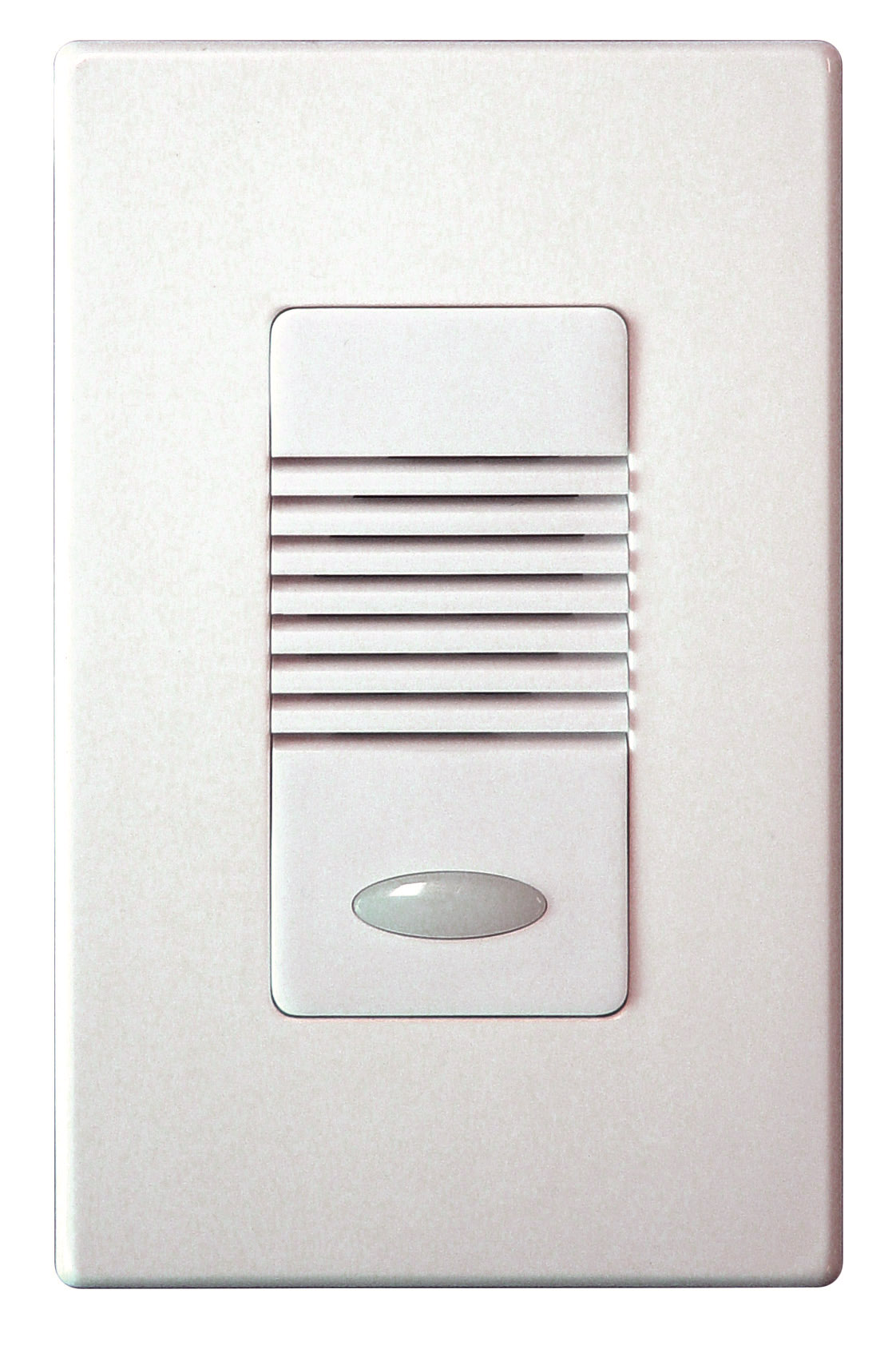

ABI-17
Forté /Intercom Door Station
CONTROL: Illuminated push button call
SPEAKER: Built-in 40 mm
TERMINAL: Cat-5 110 punch down
Screw terminal for door release (optional extra)
SIZE: Profile 30mm, mounting depth: 27mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate

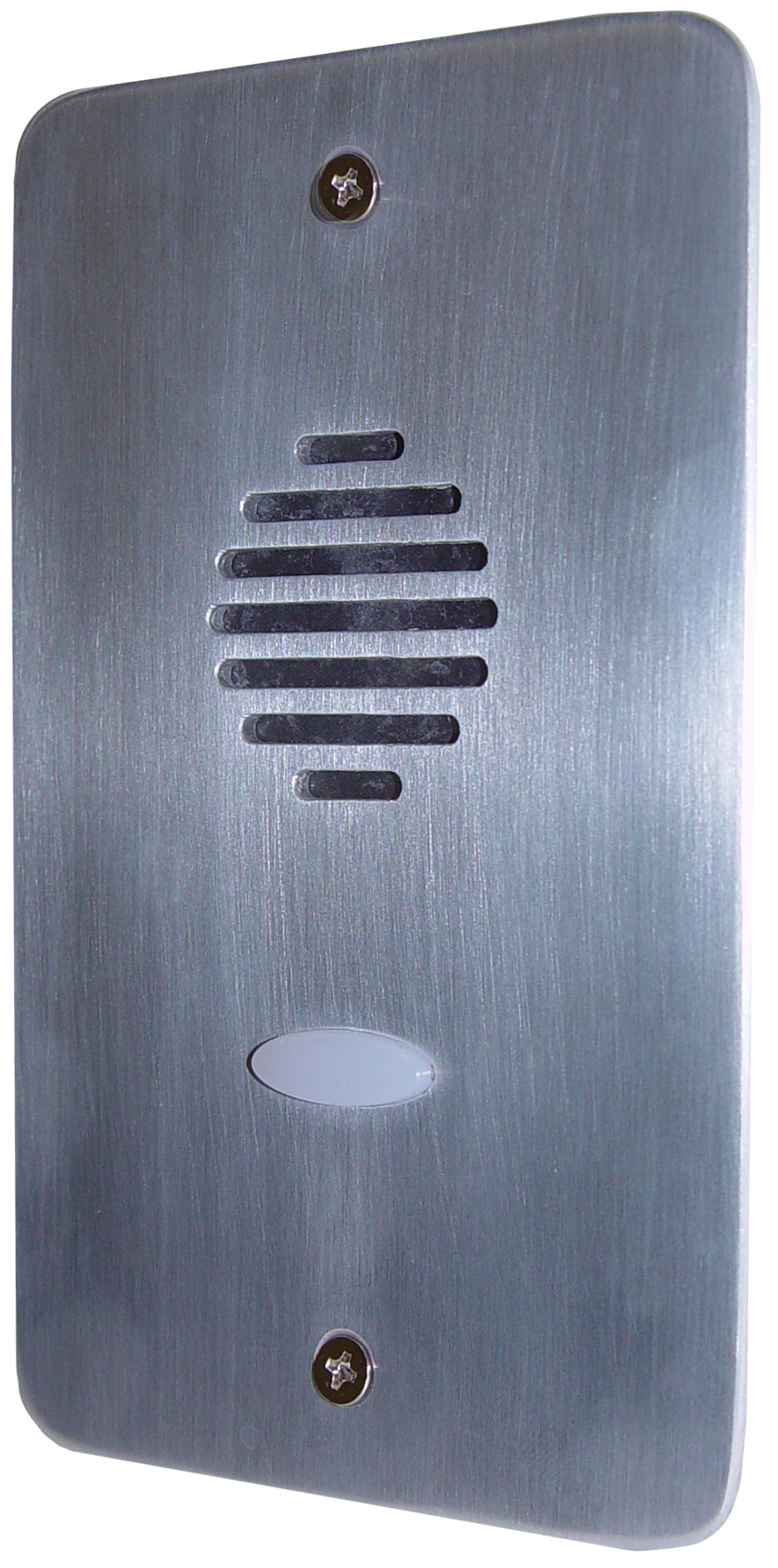

ABI-21
Intercom Door Station
CONTROL: Illuminated push button call
SPEAKER: Built-in 40 mm
TERMINAL: Cat-5 110 punch down
Screw terminal for door, supplied with security
interface
SIZE: Profile 30mm, mounting depth: 27mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied on Stainless Steal plate
