Forté A-BUS Hubs

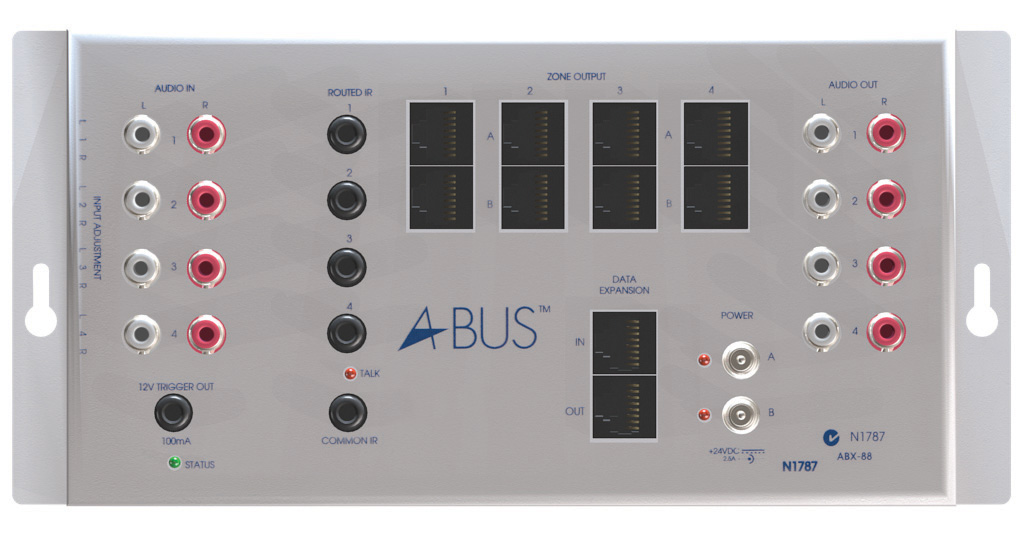

ABX-88 hub

ABX-88
A-BUS Hub 4 Source 4 Zone 8 Room

FEATURES: Drives 2 modules or A-BUS/Direct speakers per zone (2nd power supply required to power modules 5 to 8).
Fully buffered 4 x 2 A-BUS outputs, full remote control operation. Any of the four sources can be selected in each individual zone at the same time.
4 x dedicated (ROUTED) IR emitter outputs,
1 x common emitter output. Buffered source outputs to additional ABX-88(s) or home theatre receiver.
Individual input level adjustments for each source.
EXPANSION: Multiple units can be combined for more zones. Compatible with AB-62 and ABK-4RJ expansion ports when more than two A-BUS modules are required in a zone.
POWER: APS-25 24VDC 2.5A Power Supply (1 power supply included)
DIMENSIONS: Case size 240 x 104 x 29mm (WHD)
INSTALLATION CONDITIONS: The ABX-88 has been designed for vertical mounting in the rear of an equipment cabinet or on the wall behind the audio source components. (Allowance should be made for ventilation.)

Conformite Europeene more information installation manual hires image horizontal rule

AB-62 hub

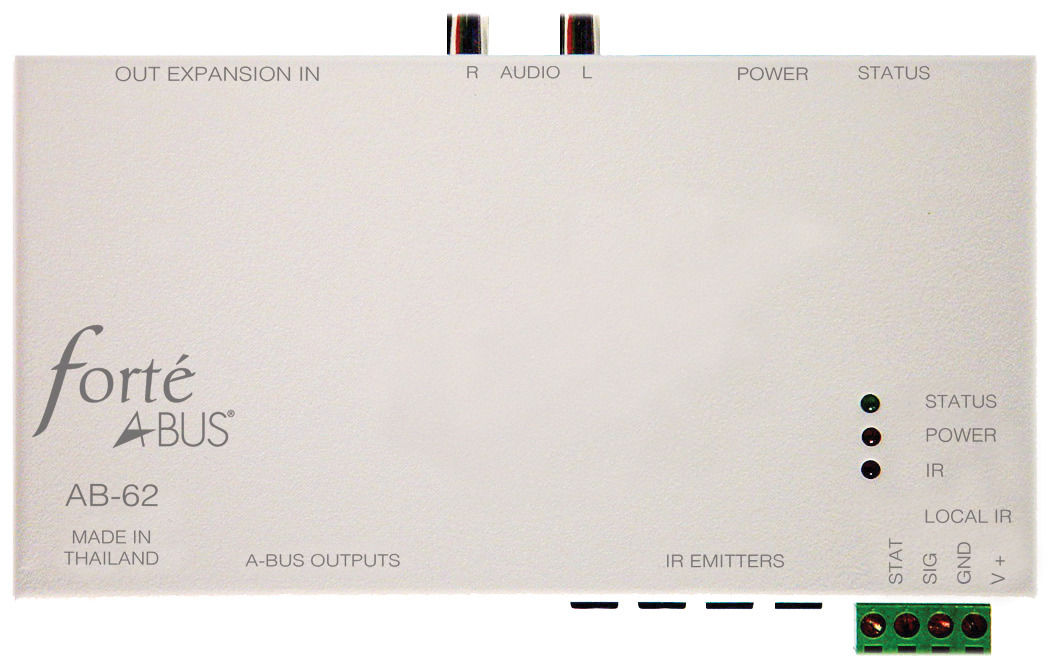

AB-62
A-BUS 1 Zone 4 Room Hub

FEATURES: Drives up to 4 A-BUS modules
4 x IR emitter outputs (3.5mm jack)
Fully buffered A-BUS outputs (4 x RJ-45)
1 x audio input with 2 x RCA phone sockets
Status override socket (12V, 2.1mm DC)
Local IR input, compatible with standard Andrew’s Audio IR receivers
EXPANSION: Multiple AB-62s can be used if more than four rooms are required.
Can be used to expand the zone outputs of the ABX-88 multi-zone controller.
Compatible with Allegro expansion ports.
POWER: APS-25 24VDC 2.5A Power Supply (1 power supply included)
STATUS: Auto status detection / override option
DIMENSIONS: Case size: 184 x 83 x 30 mm (WHD)

Conformite Europeene more information installation manual hires image hires image horizontal rule AB-61 hub

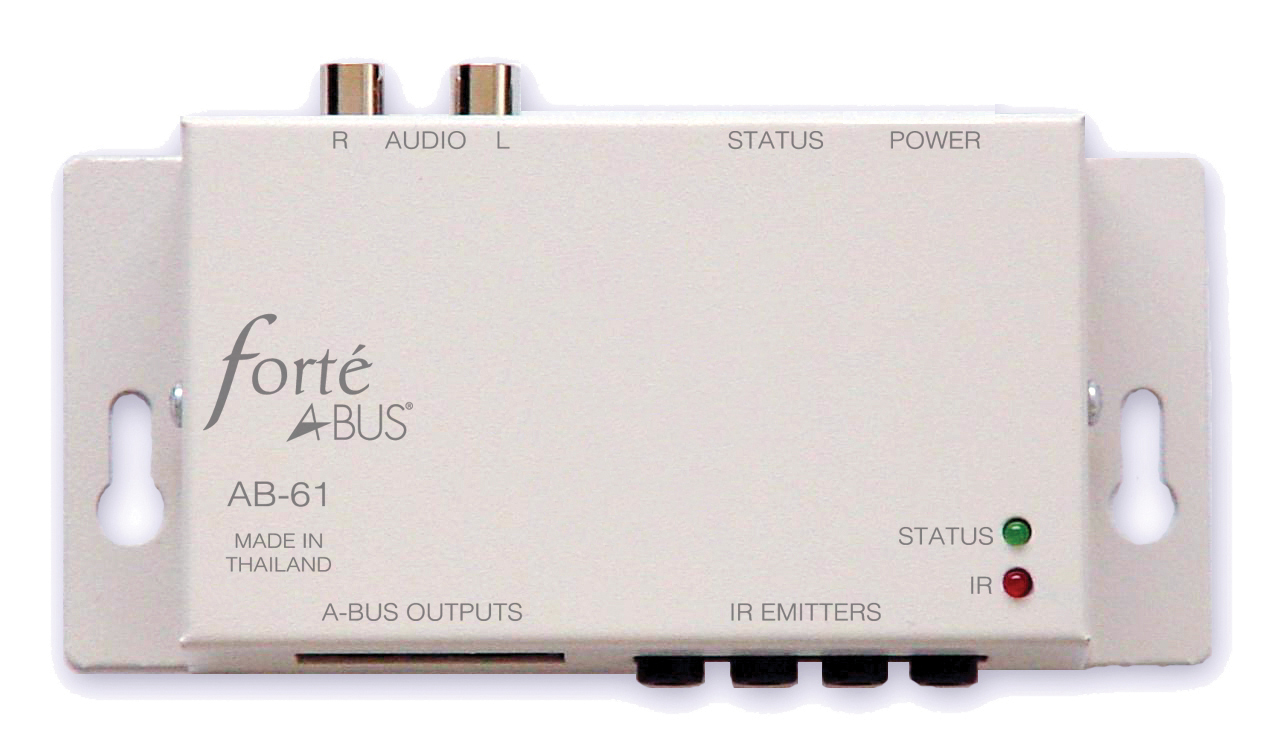

AB-61
A-BUS 1 Source 2 Room Hub

FEATURES: Drives 1 to 2 A-BUS modules or A-BUS/Direct speakers
4 x IR emitter outputs (3.5mm jack)
Fully buffered A-BUS outputs (2 x RJ-45)
Audio input 2 x RCA phone sockets
Status override socket (12V, 2.1mm DC)
EXPANSION: None
POWER: APS-25 24VDC 2.5A Power Supply (1 power supply included)
STATUS: Auto status detection / override option
DIMENSIONS: Case size: 132 x 61 x 30 mm (WHD)

Conformite Europeene more information installation manual hires image horizontal rule

ABK-4RJB hub

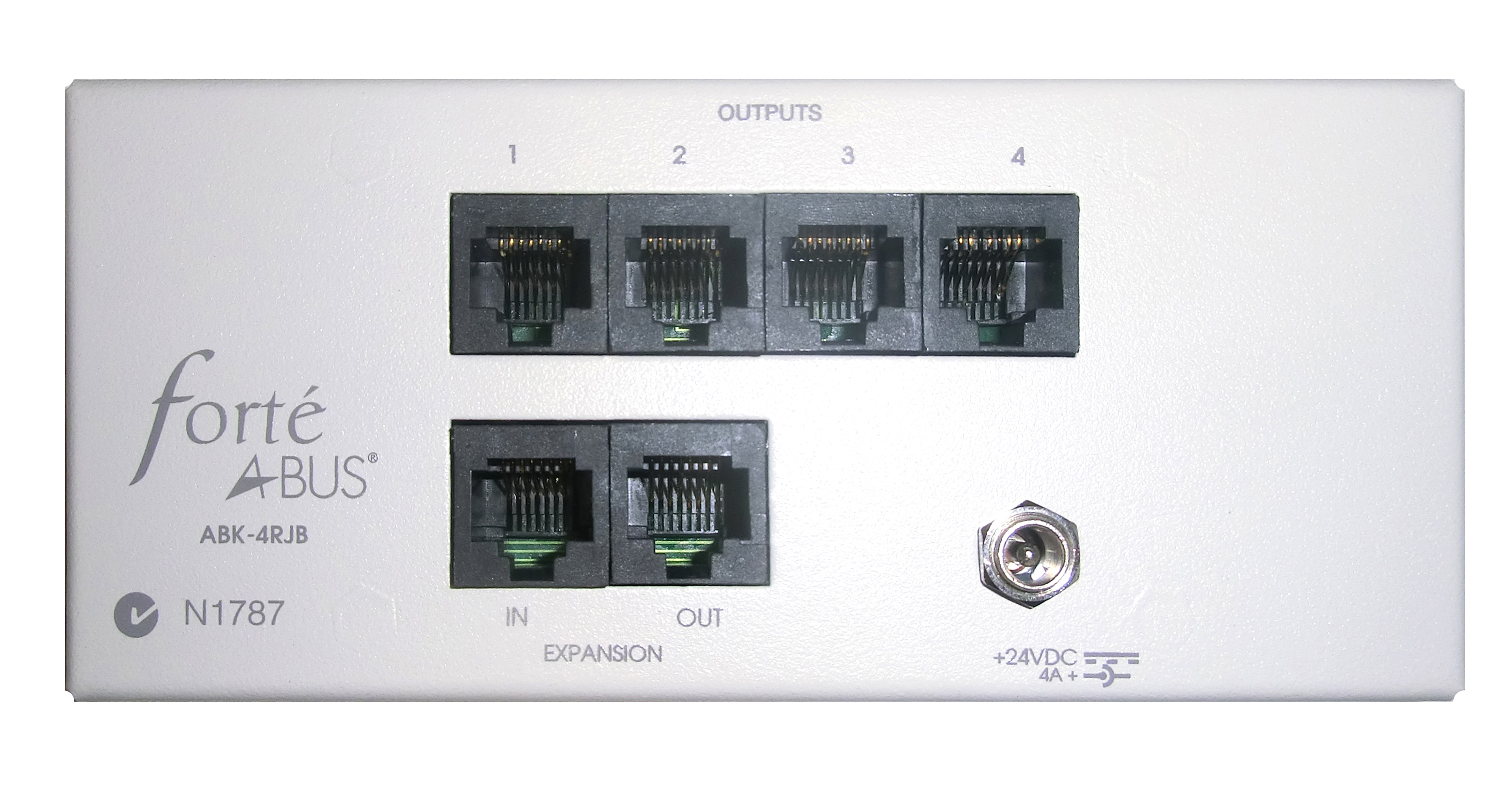

ABK-4RJB
4 Room Hub

Boxed version of the ABK-4RJ to expand the output of an A-BUS/READY amplifier or AB-62 single-source interface to 4 additional zones. Includes expansion ports. Multiple hubs may be used.

FEATURES: Drives from 1 to 4 A-BUS modules
accepts AB-70 & AB-BT20 as same input
use EXP OUT of LIM to EXP IN of hub
Outputs: Fully buffered A-BUS outputs (2 x RJ-45)
Input: RJ-45 Phantom power for input interface
EXPANSION: Multiple ABK-4RJ can be used if more than four modules are required. Can be used to expand the zone outputs of the ABX-88 multi-zone controller. Compatible with AB-62 expansion ports.
POWER: APS-25 24VDC 2.5A Power Supply (1 power supply included)
DIMENSIONS: Case size: 162 x 10 x 64mm (WHD)

Conformite Europeene installation manual hires image horizontal rule
