Forté A-BUS Structured Wiring Hubs

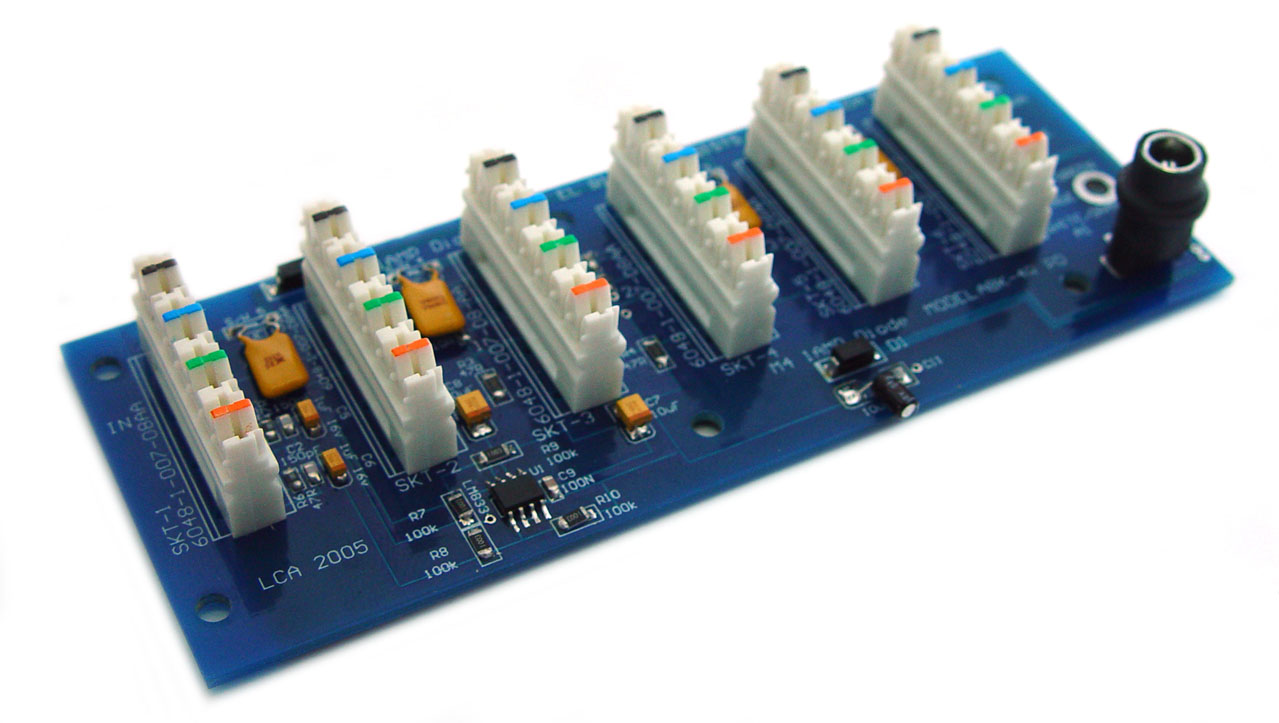

ABK-4RJ hub

ABK-4RJ
Hub for Structured Wiring Panels 1 Zone 4 Room

FEATURES: Drives from 1 to 4 A-BUS modules
Input: Krone punch down, fully buffered
Outputs: RJ-45 Phantom power for input interface
EXPANSION: Multiple Reprise’s can be used if more than four modules are required. Can be used to expand the zone outputs of the Quartet multi-zone controller. Compatible with Allegro and Overture expansion ports.
POWER: APS-25 24VDC 2.5A Power Supply (1 power supply included)
DIMENSIONS: Case size: 162 x 10 x 64mm (WHD)

Also available with black case ABK-4RJB

Conformite Europeene installation manual hires imagehorizontal rule ABK-50

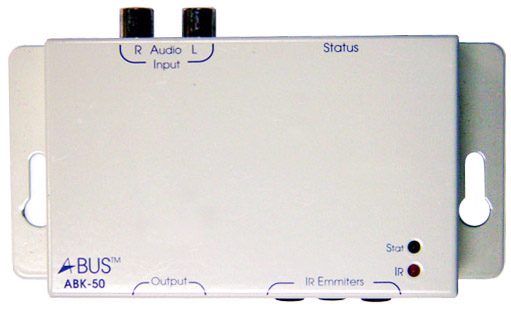

ABK-50
Interface Module

FEATURES: Drives from 1 A-BUS modules 4 IR emitter outputs (3.5mm jack), fully buffered A-BUS output (1 x RJ-45) 1 x audio input 2 x RCA phone sockets, status override socket (2.1mm DC)
EXPANSION: None
DIMENSIONS: Case size: 132 x 61 x 30mm (WHD)

Conformite Europeene installation manual hires image horizontal rule ABK-50EU

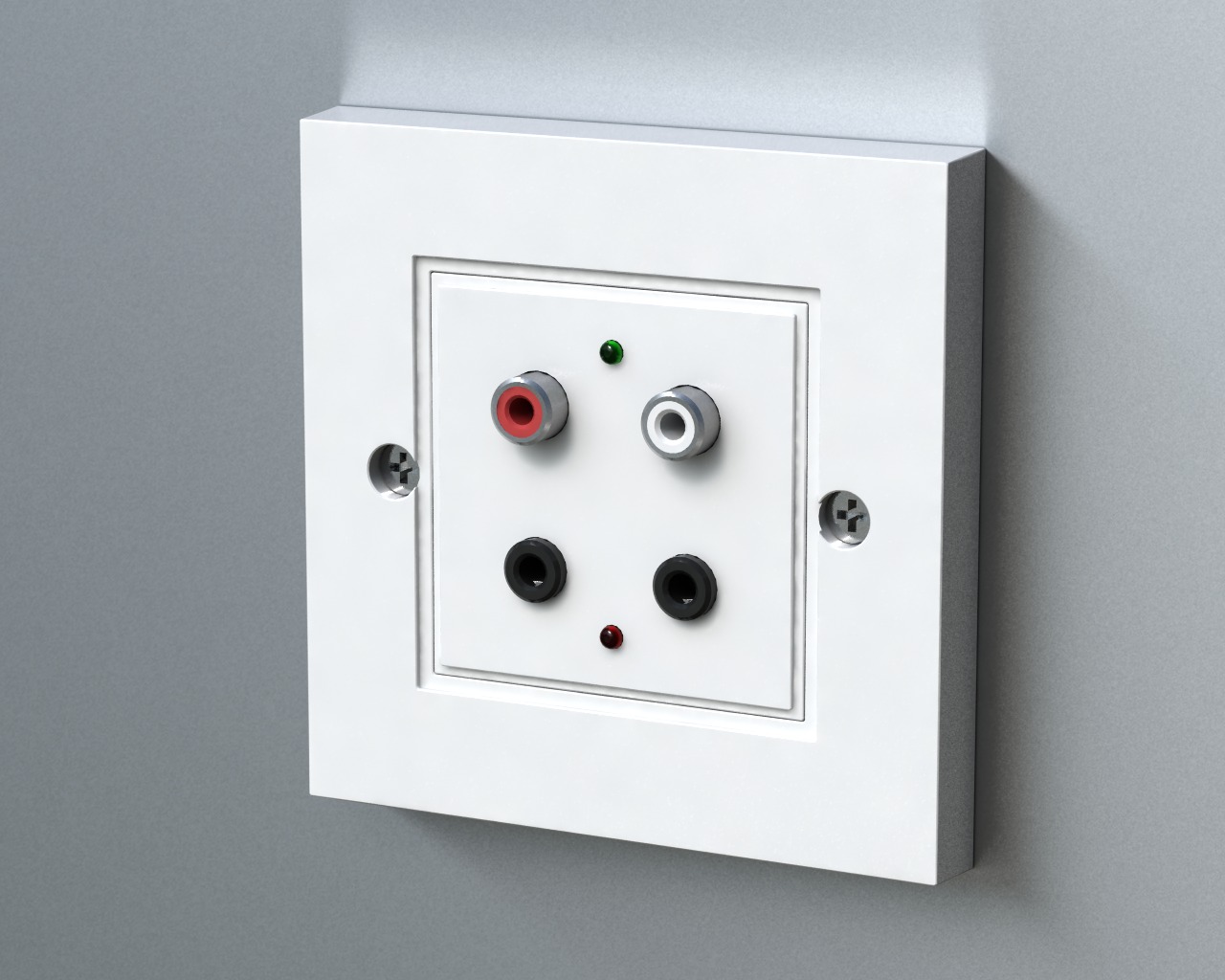

ABK-50EU
Interface Module

INPUTS:Audio - Phono Sockets (1pr)
Status - 2.1mm DC (pos. centre)
OUTPUTS: Infrared - 3 x 3.5mm TRS jacks
To hub - RJ-45
DIMENSIONS: Case size:71 x 32 x 100mm (WHD)

Conformite Europeene installation manual hires image horizontal rule ABX-84 hub

ABX-84

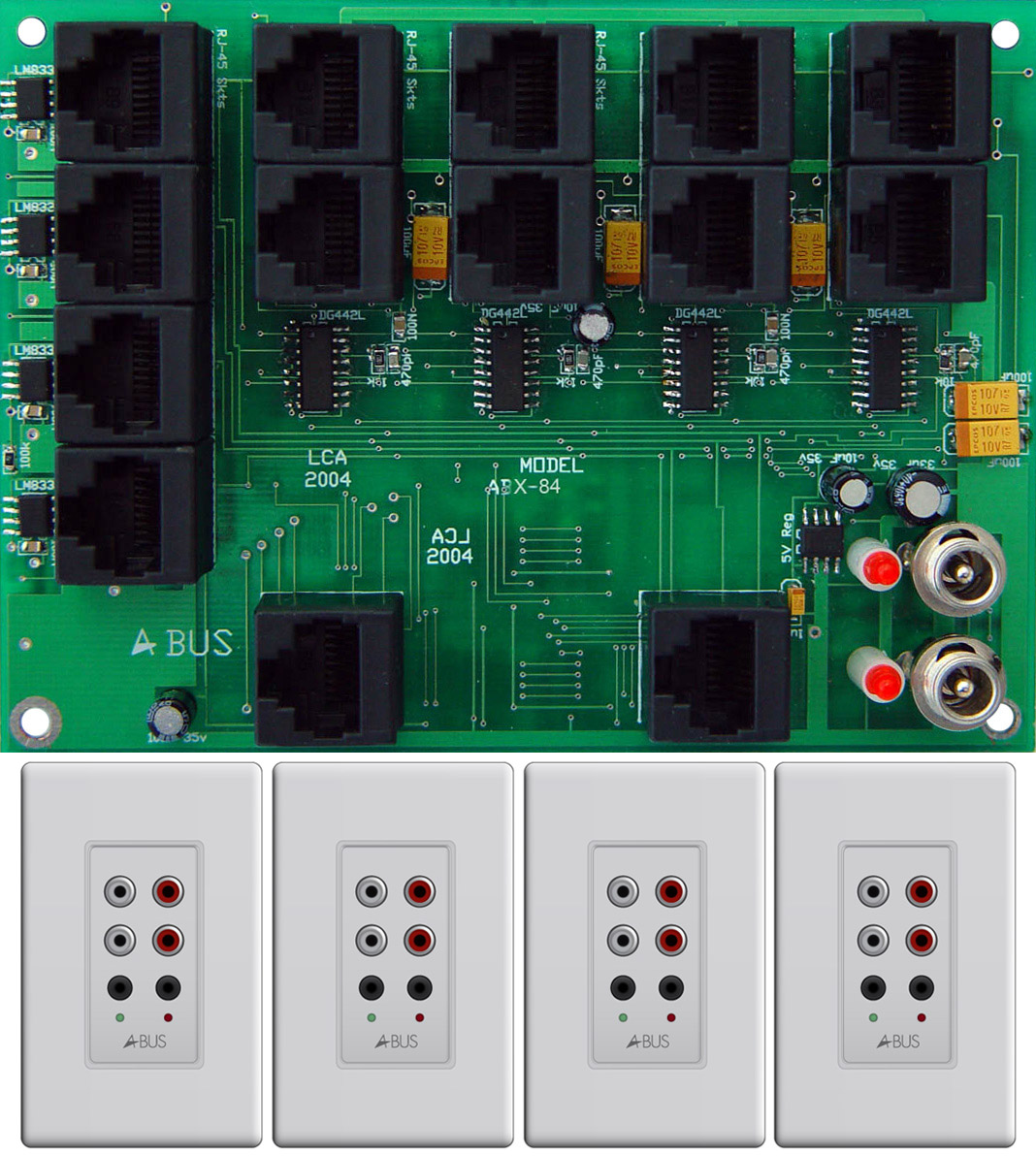

A-BUS Hub for Structured Wiring Panels
4 Source 4 Zone 8 Room

FEATURES: Drives 2 modules per zone (2nd power supply required to power modules 5 to 8). Fully buffered A-BUS outputs, full remote control operation. Any of the four sources can be selected in each individual zone at the same time. Buffered source outputs to additional hubs or home theatre receiver.
EXPANSION: Multiple units can be combined for more zones
POWER: A-BUS power supply included
DIMENSIONS: 88 x 121 x 20mm (WHD)

Conformite Europeeneinstallation manual hires image further informationhorizontal rule ABX-85 hub

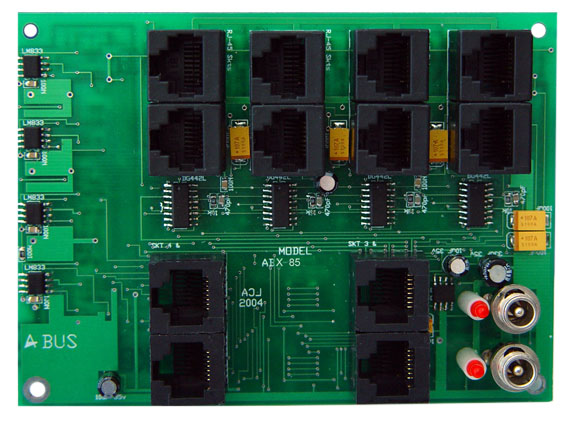

ABX-85
A-BUS 4-Way Expansion Hub
for Structured Wiring Panels

FEATURES: 4 source, 4 zone, 4 room expansion hub for ABX-84 4 zone, 8 room with 2nd power supply (APS-40)
Audio and data inputs Any of the four sources can be selected in each individual zone at the same time.
EXPANSION: Audio and data outputs allowing it to link to another ABX-85 POWER: A-BUS power supply included
DIMENSIONS: 88 x 121 x 20mm (WHD)
