Forté A-BUS/DIRECT

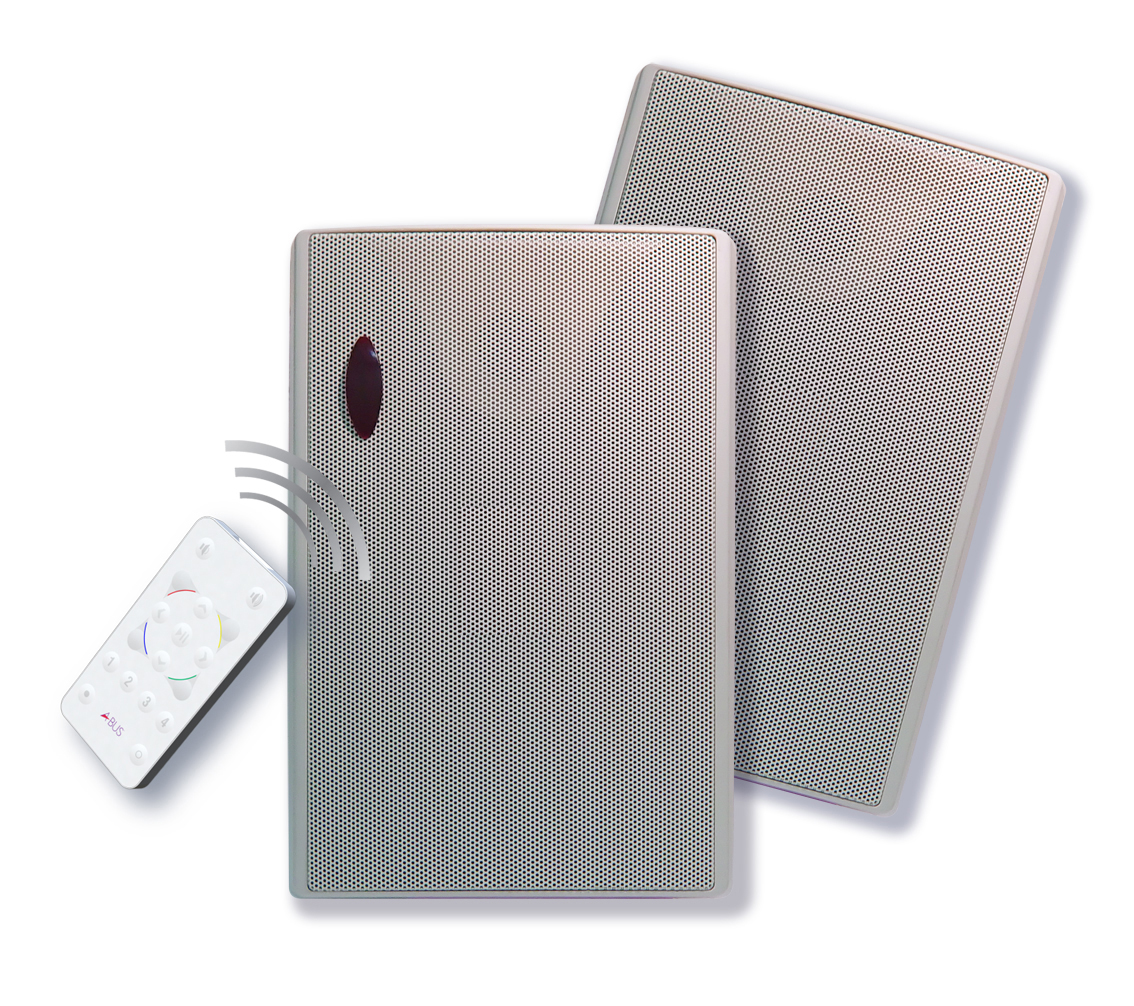

ABD-W5
A-BUS/direct wall 5.25" Active Outdoor Speaker
CONTROL: ABR-43 learning remote keypad with cradle
IR: Built-in IR receiving head with confirmation LED. IR lens located on grill. 38 & 56kHz with talkback
SPEAKERS: 1 x active A-BUS digital amplifier, 1 x passive
STATUS: Muting facility with indicator LED
INPUT: RJ45 socket
OUTPUT: Spring clip connector to passive speaker, 16 guage
CABLE: 5m 2core cable included for passive speaker; 3m cat5 for active speaker as permanent connection
SIZE: Circuit board diameter 147mm
Speaker Type: 2-way, indoor/outdoor
Woofer: 5.25” polypropylene mica
Tweeter: 25mm, 1” silk dome
Impedance: 8 ohms
Frequency Response: 65 - 20kHz
Sensitivity: 88 dB
Plastic: UV resistant
Mounting: Standard U bracket
Colour: Soft White
Grill Type: Aluminium
Weight: 4.8kg
Size: 155 x 240 x 190mm (WHD) including bracket

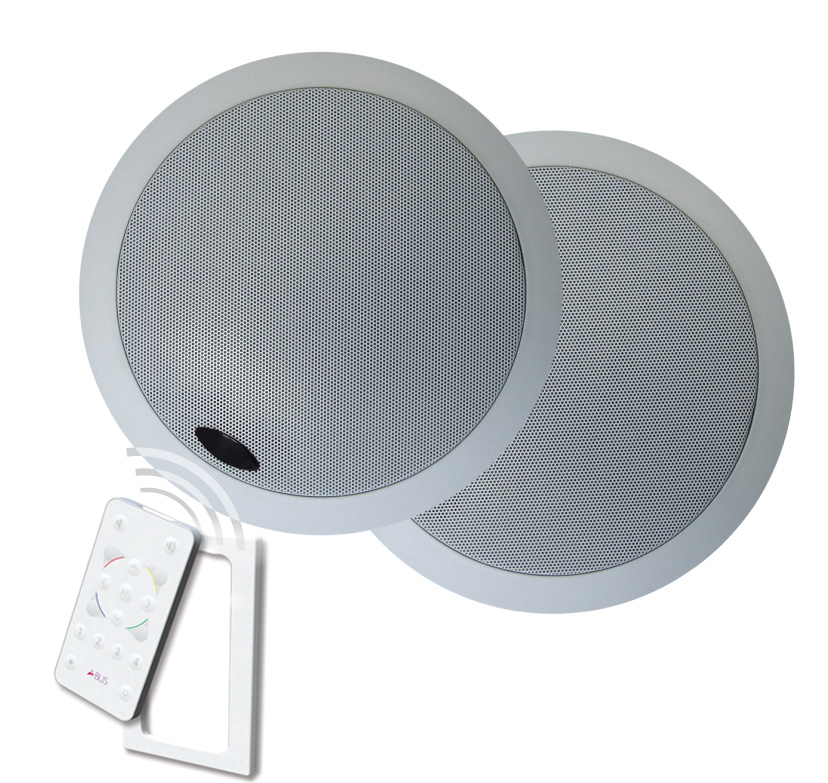

ABD-C6
A-BUS/direct 6.5" Active and Passive In-ceiling Loudspeaker
CONTROL: ABR-43 learning remote keypad with on-wall cradle
IR: Built-in IR receiving head with confirmation LED. IR lens located on grill.
SPEAKERS: Drives one active amplified (4 - 8 ohms), mono or stereo selectable and one passive (4 - 8 ohms)
STATUS: Muting facility with indicator LED
INPUT: RJ45 socket
OUTPUT: Spring clip Phoenix connector
SIZE: Circuit board diameter 147mm
Speaker Type: In-ceiling, 2-way
Woofer: 6 1/2” polypropylene
Tweeter: 3/4” mylar
Power: 5 - 60 watts
Impedance: 8 ohms
Frequency Response: 55 - 20k Hz
Sensitivity: 88 dB
Grill Type: Aluminium
Finish Dimensions: 241 mm diameter, 76 mm deep
Cutout Dimension: 207 mm diameter
