Forté IR
IRC-135
Single Zone Passive Connecting Block
PORTS: 5 emitter ports 3.5mm stereo receiver input, trim attenuation
control, enclosed case
SIZE: 75 x 17 x 43 mm (WHD)
SYSTEM STATUS: Second power supply required
POWER: IRP-140 (included)

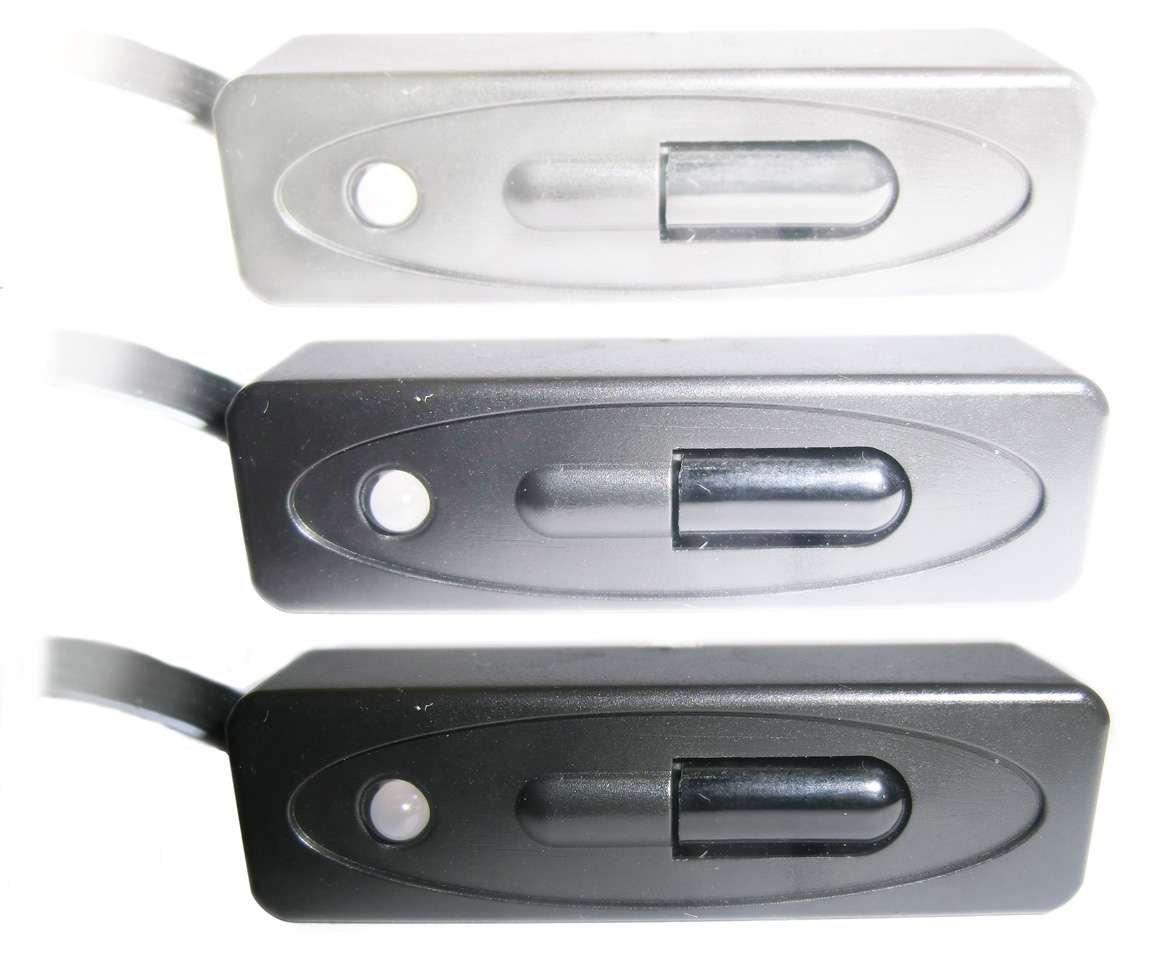

IRR-450
Mini Infrared Receiver
Paid TV- Ready
Ships with black, white and silver covers
Plasma and sunlight resistant, status and talk back LED
NOMINAL OPERATING ANGLE: 90 degrees
NOMINAL OPERATING RANGE: Up to 5 metres in direct sunlight
Up to 30 metres in ideal conditions
RECEIVER SIZE: 46 x 12 x 12 mm (WHD)
FREQUENCY: Broad Spectrum
VOLTAGE REQUIREMENTS: 12 volt regulated
CONNECTION: 4 core
TALK BACK: Talk Back Indicator LED Green
STATUS: Status Indicator LED Red
DIMENSIONS: 44mm (1.73”) x 11mm (.43”) x 12mm (.47”) (WHD)

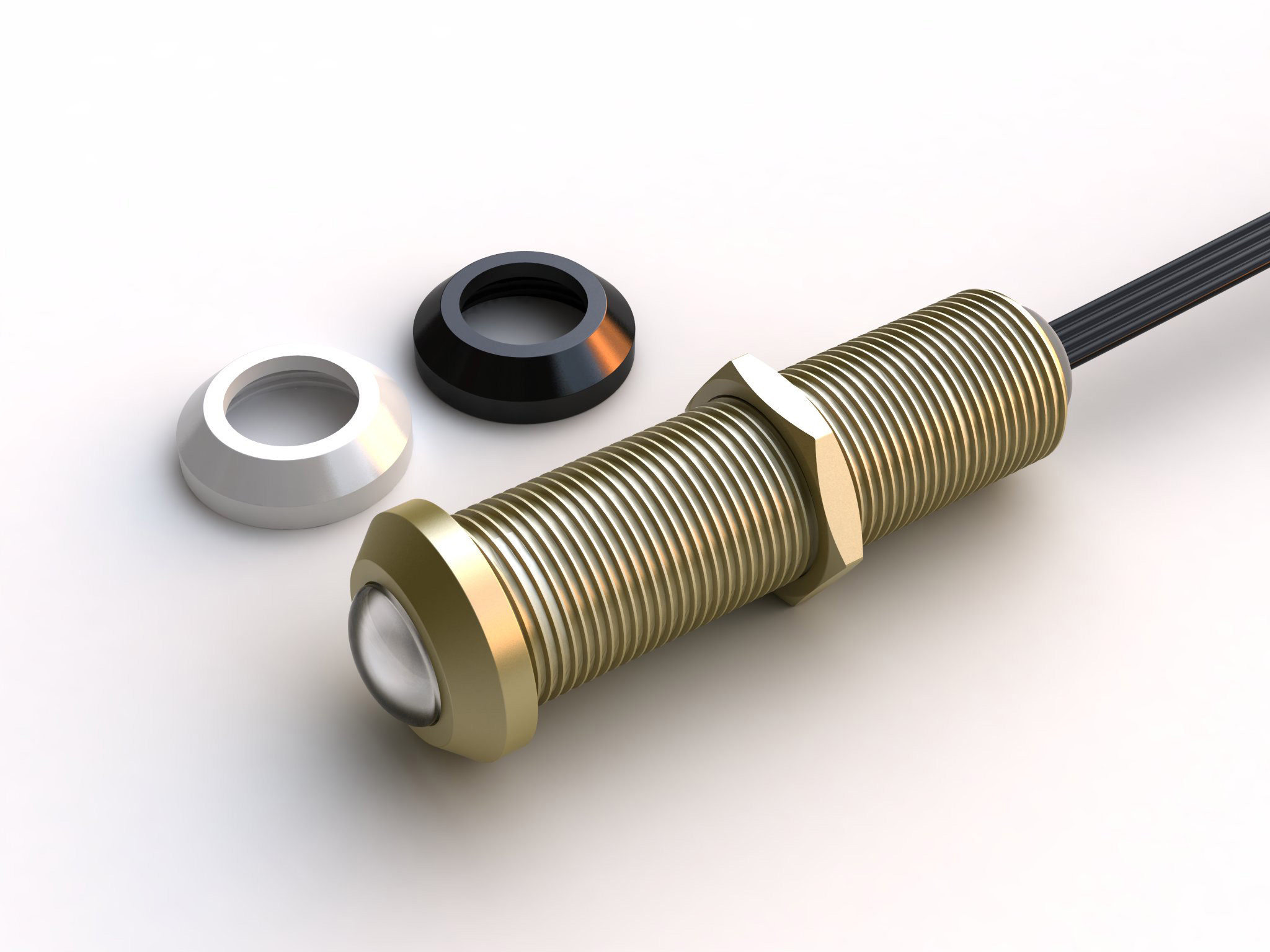

IRR-600
Barrel Infrared Receiver
Ships with black, white and brass rings
Plasma and sunlight resistant, status and talk back LED
NOMINAL OPERATING ANGLE: 45 degrees off axis
NOMINAL OPERATING RANGE: Up to 5 metres in direct sunlight
Up to 30 metres in ideal conditions
RECEIVER SIZE: 46 x 12 x 12 mm (WHD)
FREQUENCY: Dual 38 & 56 KHz
VOLTAGE REQUIREMENTS: 12 volt regulated
CONNECTION: 4 core
TALK BACK: Talk Back Indicator LED Blue
STATUS: Status Indicator LED Blue
DIMENSIONS: 50mm (2”) x 15mm (.59”) bezel diameter x 12 mm (.47”)
mounting hole diameter

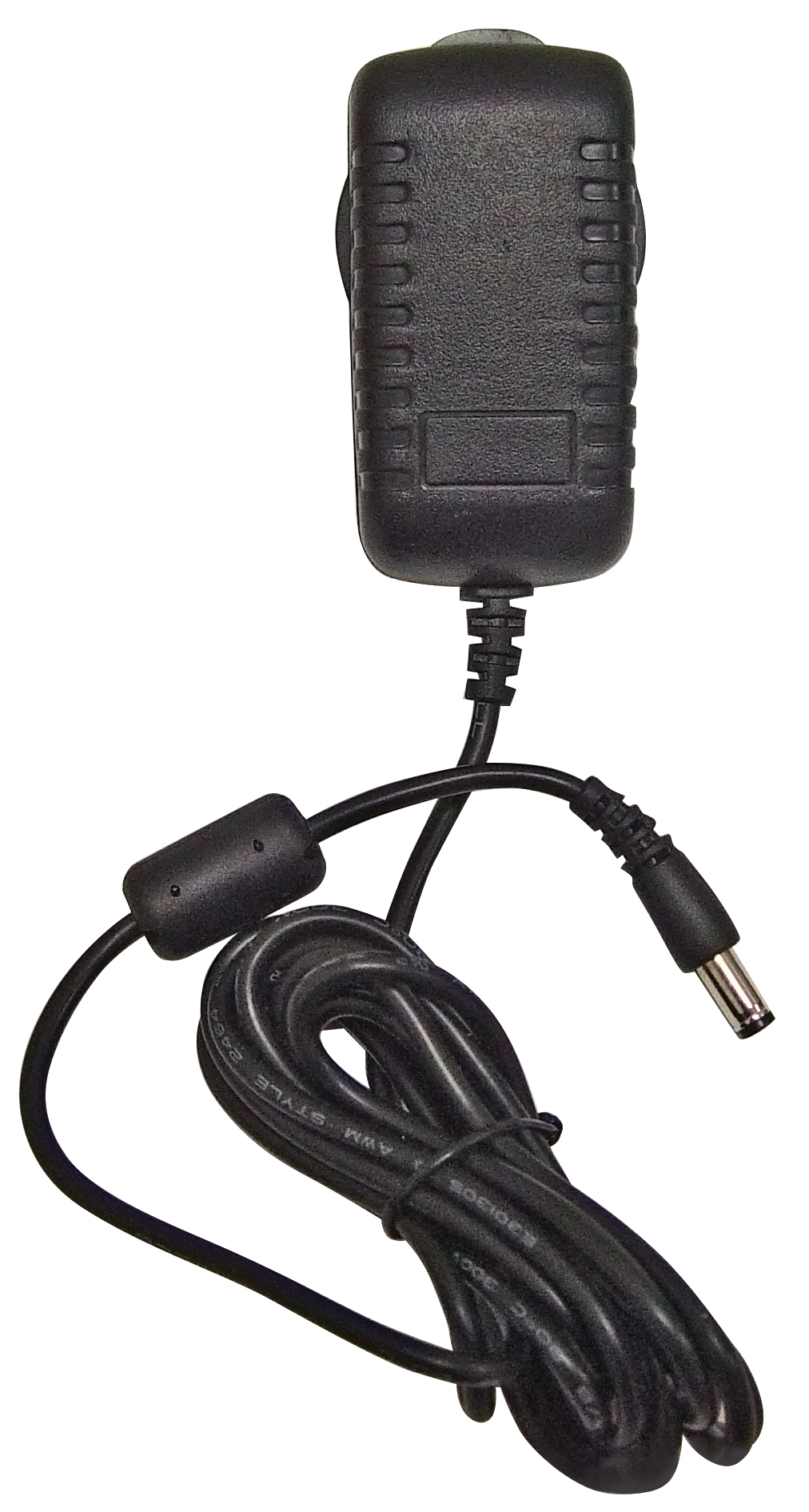

PS-2
Power Supply
1 Amp switch mode
17.14 Watt
+12V DC 1000mA
72 x 38 x 26.5 mm (WHD)

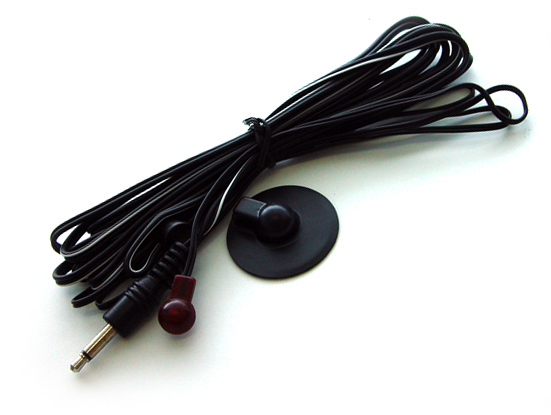

IRE-110
Single Emitter
Forté IR emitters come in either single or dual head versions.
The shells are IR transparent so the devices can still be directly controlled using the remote handset.
A “Blank Out” cover is supplied to prevent IR signals going to other components in situations where there are source components with similar IR codes. Improves adhesiveness of the emitter ensuring long term placement.
Trainer guides are supplied to assist in a tidy installation.

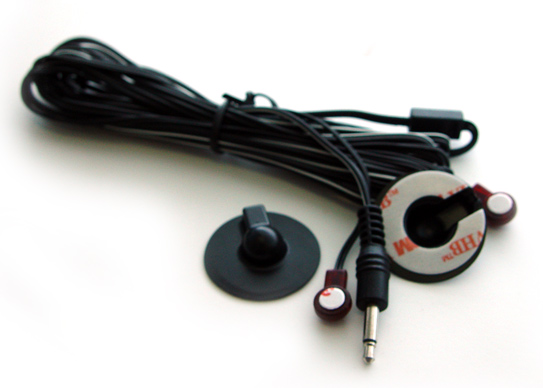

IRE-120
Dual Emitter
Forté IR emitters come in either single or dual head versions.
The shells are IR transparent so the devices can still be directly controlled using the remote handset.
A “Blank Out” cover is supplied to prevent IR signals going to other components in situations where there are source components with similar IR codes. Improves adhesiveness of the emitter ensuring long term placement.
Trainer guides are supplied to assist in a tidy installation.

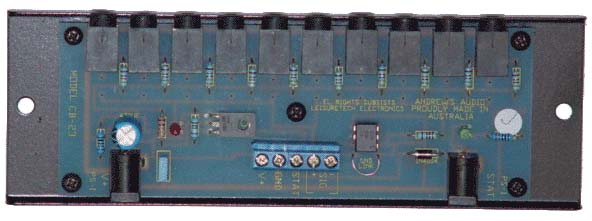

IRC-123
Single Zone Amplified Connecting Block
PORTS: 10 emitter ports
SIZE: 168 x 24 x 55 mm (WHD)
STATUS: LED indication for power status and IR activity
POWER: PS-1 (included)
IRC-122
2 Zone Passive Connecting Block
ZONES: 2 zone outputs
PORTS: 3 common emitter ports
SIZE: 168 x 24 x 55 mm (WHD)
POWER: PS-1 (included)

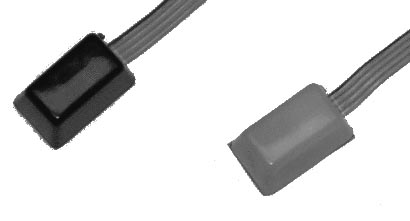

IRR-300
Miniature Infrared Receiver
Available in black (dark red) or white
Plasma resistant, status and talk back LED
ANGLE: 90 degrees
RANGE: 3 - 20 metres
RECEIVER SIZE: 20 x 13 x 12 mm (WHD)
MODULATOR SIZE: 70 x 5 x 20 mm (WHD)
700mm cable between receiver and modulator
1 piece unit

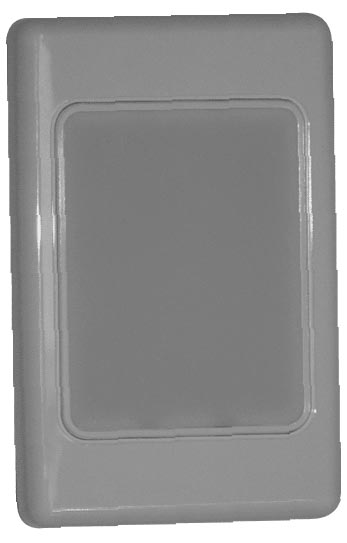

IRR-100
Wall-Mounted Infrared Receiver
Available with white lens only
Plasma resistant, status and talk back LED
Fits all Australian electrical wall boxes
ANGLE: 60 degrees off axis
SIZE: 70 x 104 x 12 mm (WHD)
Mounted on white Clipsal 2000 plate.

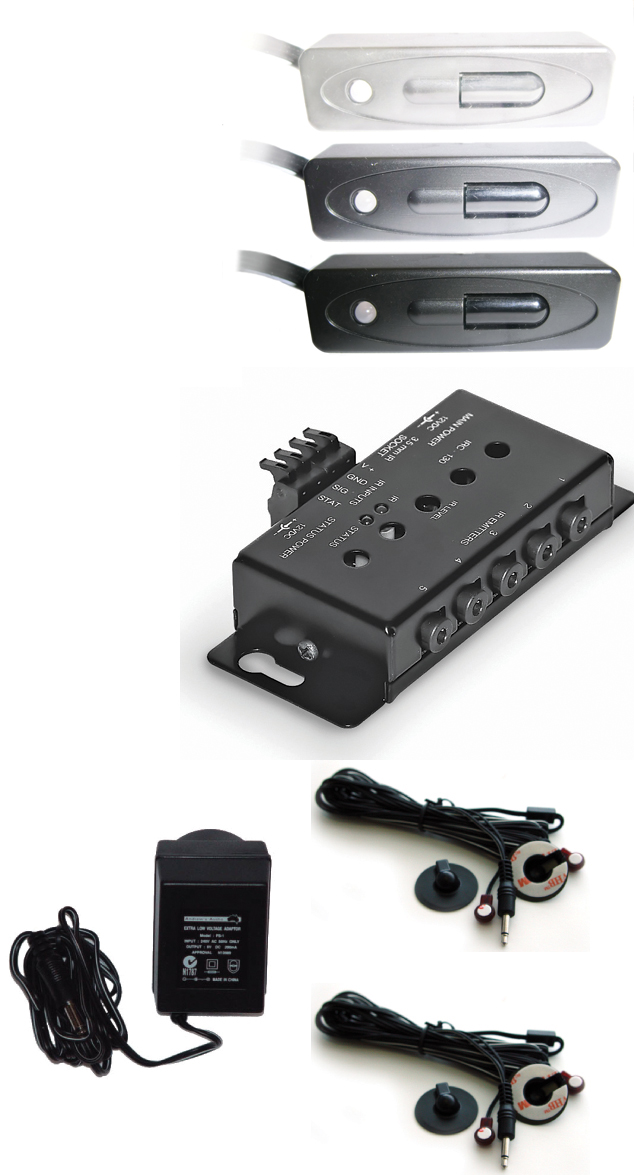

IRK-422
IR Kits
1 x IRR-450.
1 x IRC-135 with power supply
2 x IRE-120

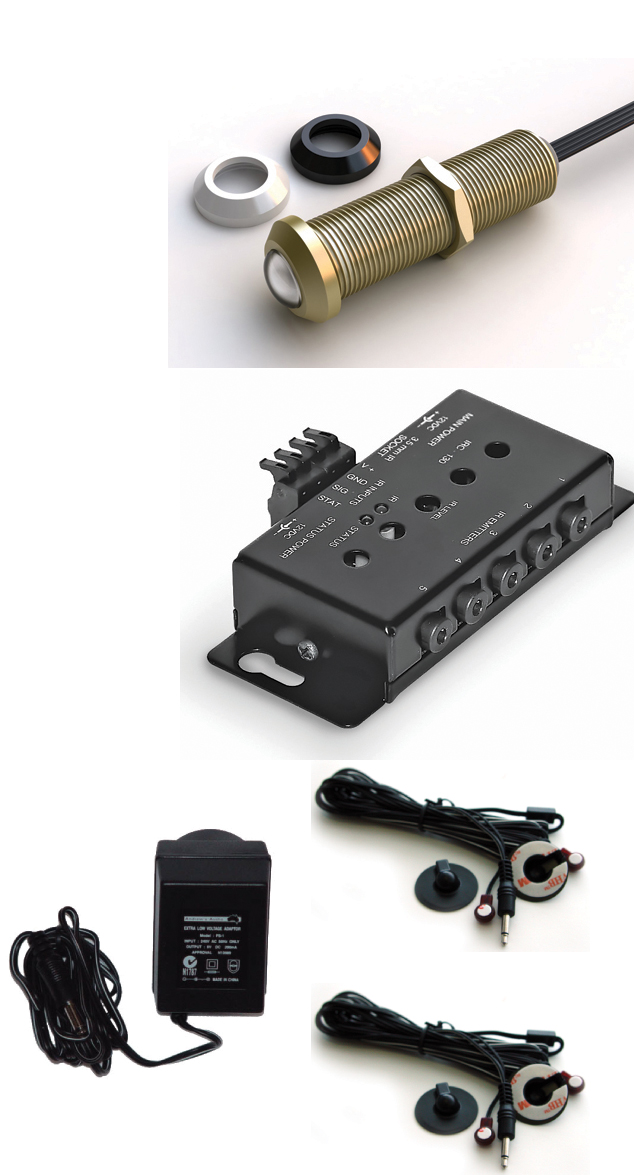

IRK-622
IR Kits
1 x IRR-600.
1 x IRC-135 with power supply
2 x IRE-120
