500900

Rackmount Balun Chassis 16

A head-end cable management solution to allow any combination of MuxLab square baluns to be installed in a 19" relay rack
Custom-tailored to allow any combination of up to sixteen (16) MuxLab baluns to be installed
Baluns may be installed with the RJ45 either front or rear facing depending on where the Cat5 cabling will enter or exit the system
Each balun snaps into place and is held firmly by a spring latching mechanism
One-piece design makes the product easy to install and maintain
Space efficient - 2U height
Includes four (4) rackmount screws and washers
Slot number silkscreen on front and rear

500901

Blank Filler Modules

Used to fill in unused slot positions on the Rackmount Balun Chassis 6 (500902)

500902

Rackmount Balun Chassis 6

Designed as a head-end cable management solution to allow any combination of up to six (6) MuxLab square baluns to be installed in a 19" relay rack
Baluns may be installed with the RJ45 either front or rear facing depending on where the Cat5e/6 cabling will enter or exit the system
Each balun snaps into place and is held firmly by a spring latching mechanism
Space efficient – 1U height
One-piece design
Supports up to six (6) baluns
Includes four (4) rackmount screws and washers
Slot number silkscreen on front and rear

500915

Surface Mount Balun Plate

Allows any MuxLab square balun to be installed on a wall or furniture surface for a more permanent and secure installation
Fully covers the balun and allows the pin configuration to be displayed for ease of reference
Mounting ears are positioned to allow multiple fixtures to be installed next to each other
Two (2) mounting screws and plastic anchors for drywall (gyproc)
installation.
Balun sold separately

500998

IR Emitter

Works in conjunction with MuxLab products to support IR source control between the AV source and the AV display
Connects to an active balun transmitter
The handheld remote control is not included
Suitable for IR data format: NEC code, RC5 code, RC6 code, Grunding code, RCA Code, Zenith code and Sony 12-bit code. Carrier frequency: 38 kHz

500999

IR Sensor

500600

IR Remote Extender Kit

Allows up to four (4) audio-video sources to be controlled via remote IR up to 2,200 ft (670m) away from the display via Cat5e/6 cable
Comes with one (1) IR Sensor (500999) and four (4) IR Emitters (500998) for maximum cabling versatility
Features three (3) pairs of screw terminal blocks allowing the three (3) unused twisted pairs to be accessed for other low voltage services such as balanced video, audio or data

500460

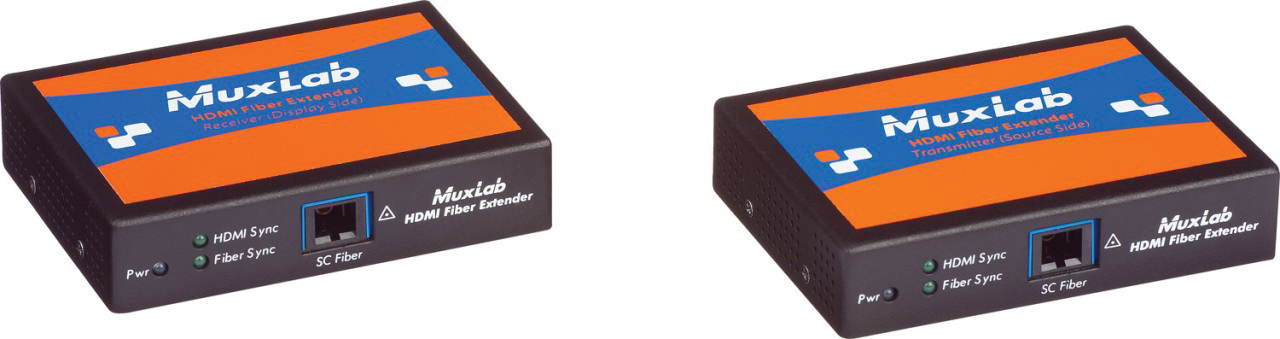

HDMI Fiber Extender Kit

Allows HDMI equipment to be connected up to 305m via one (1) multimode fiber strand in a point- to-point configuration depending on resolution.
Comes with one (1) transmitter, one (1) receiver, IR Sensor (500998), IR Emitter (500999) and two (2) power supplies.
Up to 305m via a single multimode fiber
IR Control (IR Sensor and IR Emitter included)
SC connector for multimode fiber 62.5 um/125 um or 50um/125 um.
Supports RS232
