500401

HDMI Econo Plus Extender Kit

Allows HDMI equipment to be connected up to 150 ft (45m) via two (2) Cat5e unshielded twisted pair cables in a point-to-point configuration at 1080p resolution
Supports 1080p Deep Color up to 90 ft (27m) via Cat6 cable
Kit comes with one (1) transmitter, one (1) receiver and one (1) power supply.

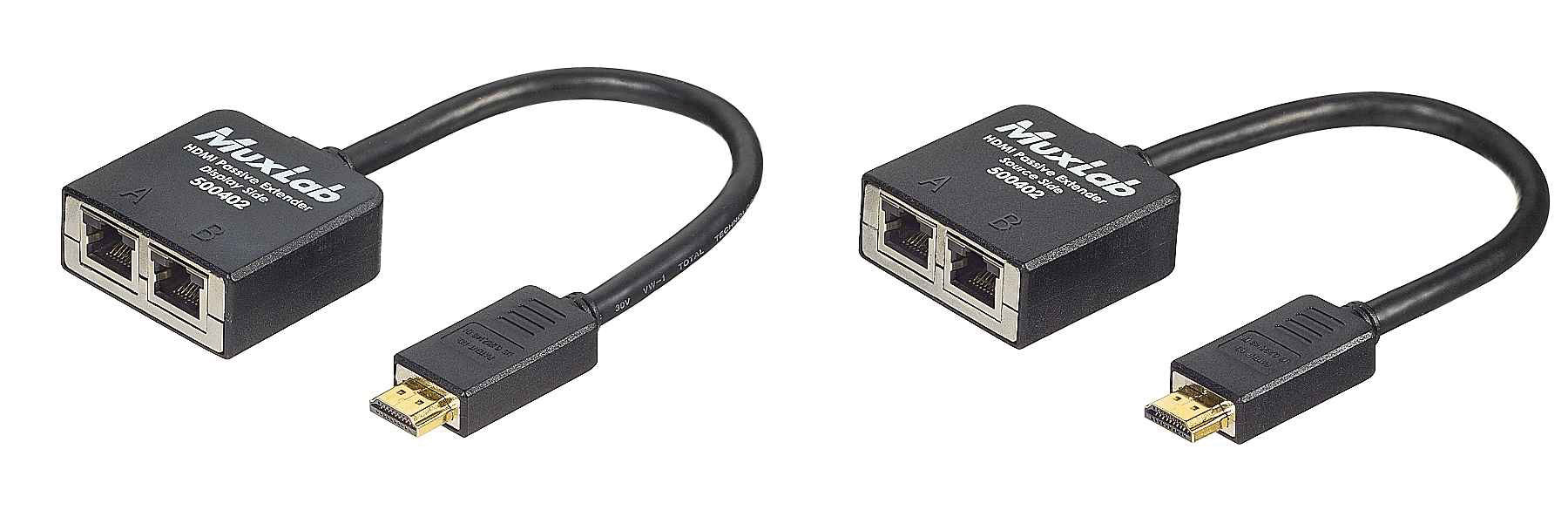

500402

HDMI Passive Extender Kit

Allows HDMI equipment to be connected up to 30m via two (2) Cat5e unshielded twisted pair cables in a point-to-point configuration at 1080p resolution
Supports 1080p Deep Color up to 27m HDMI 1.4, up to 30m @ 1080p Cat5e, Up to 45m @1080p Cat6
Connect via two (2) Cat5e/6 cables
No external power required
Supports HDMI 3D
Works with Deep Color equipment

500405

HDMI IR/Extender Kit

Allows HDMI equipment to be connected up to 300 ft (91m) via two (2) Cat5e/6 unshielded twisted pair cables in a point-to-point configuration at 1080i resolution
Supports 1080p Deep Color up to 150 ft (46m) via two (2) Cat6 cables
Kit includes one (1) transmitter, one (1) receiver, one (1) IR Emitter, one (1) IR Sensor and two (2) power supplies.
The transmitter (500406) and receiver (500407) are also sold separately. Replacement IR-Emitter (500998) and IR Sensor (500999) may be ordered.

500407

HDMI IR Receiver

As supplied in the 500405 Kit

500415

HDMI 4x4 Matrix Switch

Allows up to four (4) different HDMI sources to be switched/distributed to up to four (4) HDMI displays via two (2) Cat5e/6 unshielded twisted pair cables
HDMI 1.3a
Control options: Pushbutton, IR, USB, GUI, Web Interface
Up to 150 ft (45m) @ 1080p Deep Color via Cat6
Up to 300 ft (90m) @ 1080I via Cat5e/6
Supports IR matrix and source control
Includes four IR emitters plus wireless remote
EDID handling options
Works in conjuntion with 500407 and 500417 receivers

500417

HDMI IR Receiver with
Source Control

Allows any HDMI source to be selected via MuxLab’s HDMI 4x4 Matrix Switch from the remote display
IR jack to allow the HDMI source to be controlled
Supports 1080p Deep Color up to 150 ft (46m) via two (2) Cat6 cables and includes one (1) IR Sensor and one (1) power supply.
Up to 150 ft (46m) @ 1080p Deep Color via Cat6
Up to 300 ft (90m) @ 1080I via Cat5e/6
Connect via two (2) Cat5e/6 cables
Includes IR Sensor and handheld remote
Pushbutton control
Works in conjunction with 500407 and 500417 receivers

500420

HDMI 1x4 Distribution Hub

Allows one (1) HDMI source to be distributed to up to four (4) HDMI displays via two (2) Cat5e/6 cables
Supports up to 150 ft (46m) at 1080p/8-bit via Cat5e cable on either side of the hub
Up to 150 ft (46m) @ 1080p via two (2) Cat5e
Up to 300 ft (91 m) @ 1080i via two (2) Cat5e
Cascadable
Local HDMI output
Includes one (1) IR Emitter for IR source control
EDID configuration switch
Works in conjuction with 500405 kit, 500406 TX and 500407 RX

500450
