500301

CATV Hub

Allows a terrestrial broadband RF video signal to be distributed to multiple RF receivers via Cat5 unshielded twisted pair cable.
Eight (8) ports
900 MHz bandwidth and supports broadband video, broadband Internet and Digital Cable6
Built-in gain amplification and port buffering and may be used in conjunction with standard RF distribution equipment for larger installations
Bi-directional transmission
Cost savings - eliminate costly coaxial cable
Compact design

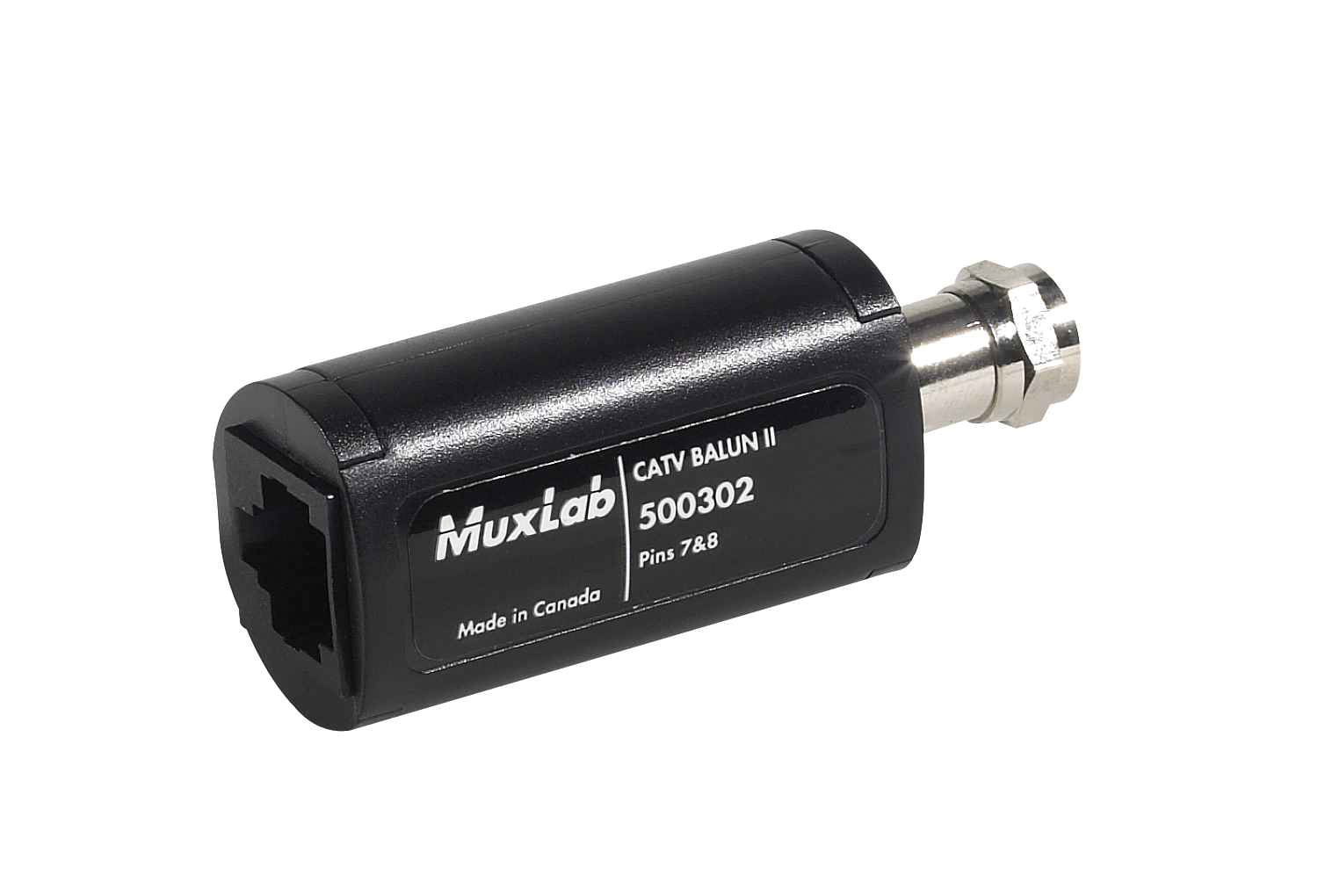

500302

CATV Balun II

Allows traditional 75-ohm coaxial cable to be replaced by a single pair of Cat 5 UTP cable in the CATV, VHF and FM environments in certain applications. Used in pairs, the CATV Balun II allows broadband CATV equipment to be integrated into structured cabling systems thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet.
High bandwidth - up to 900 MHz
Low insertion loss
Compact design
Supports broadband Internet and digital cable
Eliminate costly coaxial cable
Quicker moves, adds and changes
Neater wiring
500302 2 pk available

500306

Shielded CATV Balun

Allows RG6 coaxial cable to be replaced by Cat 5e/6/7 STP or UTP cable in the terrestrial RF environment
Used in pairs, allows broadband CATV equipment to be integrated into a structured cabling system thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet
High bandwidth up to 900 MHz including Internet, digital cable
Supports Cat5e/6/7 STP and UTP
Fits side-by-side on most RF splitters
Lower EMI /RFI egress when STP is used
Cast aluminum enclosure for maximum EMI/RFI shielding
Low insertion loss
500306 - 2 pack available
