Component Video Balun

Allows a single component video signal (Y, Pb, or Pr) to be transmitted via cost-effective unshielded twisted pair (UTP) cable
Three (3) balun pairs are required for one complete component (YPbPr) video connection
Allows three coaxial cables to be replaced by one Category 5 twisted pair cable, allowing standard structured cabling techniques to be used for neater and more streamlined cabling
Compact enough to allow three (3) units to be connected side by side on the back of the component video equipment.
Supports one component of the YPbPr video signal
Up to 1,000 feet (305m) via Cat 5 UTP
Gold-plated connector
Cable strain relief
Compact design
Lifetime warranty
US Design Patent #D495,320

500040, 41, 42, 43

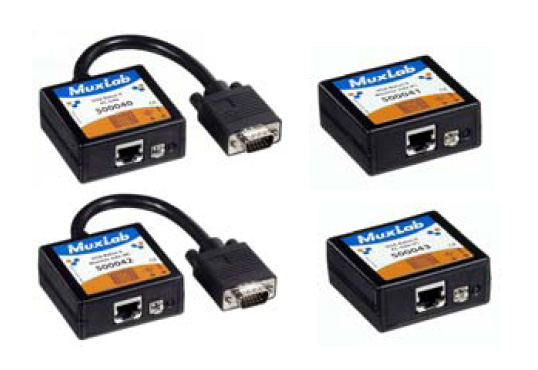

VGA Balun II

Eliminates costly and bulky VGA cable, allowing a VGA source to be connected to a VGA monitor via one (1) 4-pair Cat 5 unshielded twisted pair (UTP) cable
Each VGA connection requires p/n 500040 at the source and either p/n 500041 or 500042 at the display
Features "reset" button*
Fully supports Cat5 UTP*
Cost efficient versus VGA cable
Use existing structured cabling system
Save conduit space

*Reset switch on units may be required with certain displays.

500047

PS/2 Converter Kit

Allows a standard PS/2 keyboard and mouse to be connected to a PC up to 350 ft via Cat5 unshielded twisted pair cable in a point-to-point configuration
500045 and 500046 work in pairs or in conjunction with each other for maximum cabling flexibility
500045 is designed to connect easily to a PS/2 keyboard and mouse
500046 is designed to connect easily to the PC
Up to 350 ft via Cat5 UTP
Color coded cable leads
Compact design

500050 & 500051

Video/Digital Audio Balun

Allows one component video (YPbPr or RGB) signal and one Digital Audio signal to be transmitted via cost-effective unshielded twisted pair (UTP) cable in a point-to-point configuration
Used in pairs, the Component-Digital Balun supports 480i/p, 720p and 1080i/p video formats for hi-definition (HDTV) video applications
Supports 480i/p, 720p, 1080i/p
Supports 480i/p up to 1,000 ft (305m) via Cat5
Supports 720p/1080i/p up to 500 ft (152m) via Cat 5
Moulded color-coded RCA cable leads
Supports digital audio on fourth twisted pair
Modular shielded RJ45 connector
500050 2 pack available
500051 2 pack available

500052 & 500053

Video/Analog Audio Balun

Allows one component video (YPbPr or RGB) signal and one Analog Audio signal to be transmitted via one Category 5 twisted pair cable for more cost-efficient cabling
Used in pairs, the Component Video/Analog Audio Balun supports 480i/p, 720p and 1080i/p video formats for hi-definition (HDTV) video applications
Supports 480i/p, 720p, 1080i/p
Supports 480i/p up to 1,000 ft (305m) via Cat5
Supports 720p/1080i/p up to 500 ft (152m) via Cat 5
Moulded color-coded RCA cable leads
Supports analog audio on fourth twisted pair
Modular shielded RJ45 connector
500052 2 pack available

500054 & 500055

Component Video/IR
Pass-Thru Balun

Allows one component video (YPbPr or RGB) signal and one IR emitter signal to be transmitted via one Category 5 twisted pair cable for more cost-efficient cabling
Used in pairs, supports 480i/p, 720p and 1080i/p video formats for commercial and residential hi-definition (HDTV) video applications
Supports 480i/p up to 1,000 ft (305m) via Cat5
Supports 720p/1080i/p up to 500 ft (152m) via Cat 5
Moulded color-coded RCA cable leads
Supports IR-emitter pass-thru on fourth twisted pair
Modular shielded RJ45 connector
500054 2 pack available

500056 & 500057

Component-Composite
Video Balun

Allows one component video (YPbPr or RGB) signal and one Composite Video signal to be transmitted via one Category 5/6 twisted pair cable for more cost-efficient cabling
Used in pairs, supports 480i/p, 720p and 1080i/p video formats for commercial and residential hi-definition (HDTV) video applications
Supports 480i/p up to 1,000 ft (305m) via Cat5
Supports 720p/1080i/p up to 500 ft (152m) via Cat 5
Moulded color-coded RCA cable leads
Supports composite video on fourth twisted pair
Modular shielded RJ45 connector

500058

Video/Stereo Audio Balun

Allows one component video (YPbPr or RGB) signal and one (1) Stereo Audio channel to be transmitted via one (1) Cat5E/6 twisted pair cable for more cost-efficient cabling
Features Ground Loop Coupling (GLC) to help eliminate "hum" bars - US Patent pending
Used in pairs, supports high-definition resolution and true left/right stereo audio for hi-fidelity commercial and residential AV applications
Supports 480i/p up to 1,000 ft (305m) via one Cat5/6*
Supports 720p/1080i/p up to 500 ft (152m) via Cat5/6*
Supports true Hi-Fi left/right analog stereo audio
Modular shielded RJ45 connector
500058 2 pack available

* Not compatible with 500050/51/52/53/54/55/56/57

500090

Video Balun Kit

Allows component video, analog stereo audio and/or digital audio, and one IR-emitter signal to be transmitted via a cost-effective unshielded copper twisted cable in a point-to-point configuration
Supports simultaneous stereo audio and digital audio transmission
Used in pairs, supports high-definition resolution and true left/right stereo audio for hi-fidelity commercial and residential AV applications
Provides an IR-emitter pass-through connectivity, supports up to 1080p resolution, and features manual brightness and sharpness adjustments
Up to 1,000 ft (305m) via Cat5E/6 @ 480i/p
Up to 500 ft (152m) via Cat5E/6 @ 1080p
Ground Loop isolation

500140, 41, 42, 44

Active VGA Balun II Kit

Allows VGA or component video to be transmitted via cost-efficient unshielded copper twisted cable in a point-to-point configuration
Supports remote power pass-thru and is DDC compliant with all "plug-and-play" laptops, PCs and displays
Supports up to 1920 x 1440 pixels and 1080p resolution and features manual gain adjustment and local monitor output for added versatility
Includes one (1) transmitter, one (1) receiver and two (2) power supplies
Up to 600 ft (180m) via Cat5e/6 @ 1920 x 1440
Up to 600 ft (180m) via Cat5e/6 @ 1080p
Remote power pass-thru up to 150 ft (46m)
DDC1/DDC2 (Plug-and-Play) Compliant
Manual gain compensation
Local monitor output

500145

Active VGA Audio Balun Kit

Allows VGA and stereo or digital audio to be transmitted via cost-efficient unshielded copper twisted cable in a point-to-point configuration
Supports RS232, is DDC compliant and works in conjunction with MuxLab’s IR-Emitter (500998) and IR Sensor (500999) to support IR source control
Supports up to 1920 x 1200 resolution and features manual brightness, sharpness and skew adjustments
Up to 600 ft (180m) via Cat5e/6 @ 1920 x 1200
Supports analog stereo or digital audio
Supports RS232 or IR control
DDC1/DDC2 (Plug-and-Play) Compliant
Local VGA/Audio monitor output
Ground loop isolation

500151

VGA 1x4 Hub

Allows one (1) VGA (RGBHV) source to be distributed up to up to four (4 displays via Cat5/6 cable for more cost-efficient cabling
Works in conjunction with the Active VGA Balun II Kit (500140) and Active VGA Balun II Receivers (500142)
At least one (1) 500140 is required to support one (1) display. Up to three (3) additional 500142 may be added to support up to three (3) additional displays
Plug and Play - DDC1 and DDC2 Compliant
Remote power up to 150 ft (46 m)
Modular RJ45 on input and output
Supports up to 1920 x 1440, 1080p
Ground loop isolation on every port

500161

VGA 4x1 Switcher

Allows up to four (4) VGA (RGBHV) sources to be switched to one (1) display via Cat5e/6 cable for more cost-efficient cabling
Works in conjunction with the Active VGA Balun II (500140) and Active VGA Balun II Transmitter (500141).
At least one (1) 500140 is required to support one (1) source and one (1) display. Up to three (3) additional 500141 may be added to support up to three (3) additional sources
Auto and Manual switching modes
Control via: manual, IR, RS232 and USB
Plug and Play - DDC Compliant
Remote power up to 150 ft (46 m)
Modular RJ45 on input and output
Supports up to 1920 x 1440, 1080p
Includes GUI software and IR remote
Works in conjunction with 500140/141/142
May be cascaded with VGA 1x4 Hub (500150)

500251

Component Video Hub

Allows one (1) full component video (YPbPr/RGB) source and one (1) digital or analog audio video source to be distributed up to eight (8) destinations for more cost-efficient cabling
Modular RJ45 on input and output
Cascadable to up to levels
Supports 480i/p up to 1,000 ft (305m) via Cat5
Supports 720p/1080i/p up to 500 ft (152m) via Cat 5
Supports digital or combined L/R analog audio channel on fourth twisted pair
Integrates seamlessly with MuxLab baluns
