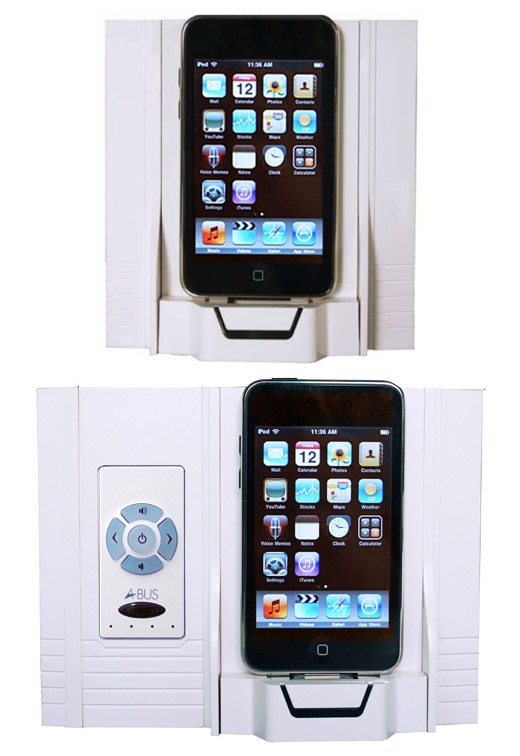

AB-315

AB-315

On-Wall Docking Station
Made for iPod®

NEW

Replaces the AB-313 with new improved design.
It can be used as a local source input and with the
Forte IRK-4RJ (iSolutions hub) as a central source input.
The iPod & iPhone can be controlled via the Forte A-BUS ABR-43 learning, remote keypad with wall cradle, providing fast track forward, backward, pause/play whilst in its dock.
iPod DOCK: LIM (local input module)
Unit is located between the A-BUS hub and wall module
Ideal for the bedroom, kitchen, study, workshop
Or as a Direct Source input on AB-62 & ABK-4RJ A-Bus Hubs TERMINALS: 110 punch down or RJ-45
SIZE: Profile: 31mm, mounting depth: 40mm
PLATE SIZE: (2 gang) 124 x 130 mm (3 gang) 171 x 130 (WH)
Supplied with screwless wall plate

Please note new mounting instructions.

iPod* not included

For Australian sale only.

Additional information availableProduct ImageAdditional information available

AB-313

AB-313 Now Discontinued - see AB-315

Channel Vision A-BUS iPod* Dock

iPod DOCK: LIM (local input module)
Unit is located between the A-BUS hub and wall module
Ideal for the bedroom, kitchen, study, workshop
TERMINALS: 110 punch down or RJ-45
SIZE: Profile: 12mm, mounting depth: 55mm
PLATE SIZE: 75 x 116 mm (WH)
Supplied with screwless wall plate

iPod* not included

For Australian sale only.

Additional information availableProduct ImageNo additional information available

AB-313

AB-301

Local or Main Source Input Module

IR: 2 out
INPUTS: One pair RCA line level
INDICATOR: Status line
DELAY TIME: 20 sec
IN/OUTPUT: RJ-45 for main source / 110 punch-down for local input SIZE: Front projection: 19mm, mounting depth: 34mm
PLATE SIZE: 75 x 116 mm (WH) Supplied with screwless wall plate

For Australian sale only.

No additional information availableProduct ImageNo additional information available
