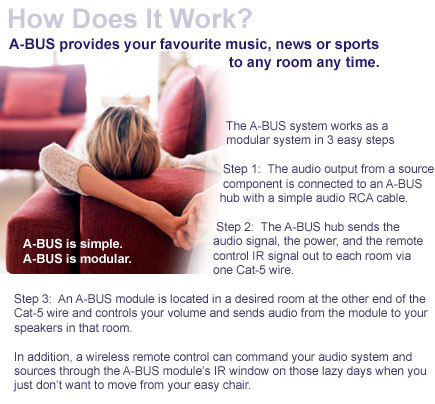

How Does It Work?
How To Use?
How To Install?
Where To Install?
USA Partners
Patent Countries

System Diagram

Designing an A-BUS System is Easy
You can mix and match any A-BUS module with a power unit to build a system that suits you and your home. Please see the explanation below to work out your requirements based on the most popular A-BUS components.

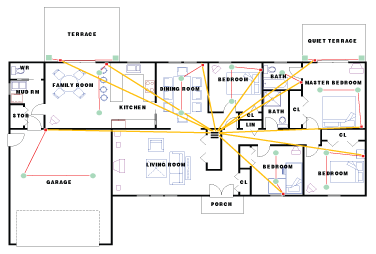

House Plan Showing A-BUS

‘Wired Only’ Option for New Homes and Extensions
If you don’t need the full music system straight away, you can choose to ‘prewire’ your home to ensure it will be ready for the A-BUS technology of tomorrow. A-BUS pre-wiring can include all major rooms, so no complicated decisions are required upfront. You will be able to install A-BUS components in the rooms you want at a later date.

What’s more, pre-wiring carried out by an authorized LeisureTech dealer receives an A-BUS Certificate of Authenticity. This not only provides you with a record of rooms wired, but also verifies that genuine A-BUS components have been used by an approved installer, assuring you of outstanding performance when all the A-BUS components are installed.

A-BUS Design & Consultation Service
Your local A-BUS dealer will be happy to provide more information to help you make the right choices to suit your lifestyle, both now and in the future. Authorized dealers can provide you and/or your builder, electrician or architect with complete design, consultation and installation services. Also ask your dealer about the wide range of in-wall and in-ceiling speakers available. They stock high performance and great-looking speakers to suit all tastes – at surprisingly affordable prices.

If you already own or are looking to purchase a home theatre receiver, why not consider an A-BUS/READY receiver which is equipped with an RJ-45 A-BUS output socket. Look for the A-BUS/READY logo on the front. That means a simple RJ-45 connection on the back immediately connects you to the whole-house system, as long as the house is wired for A-BUS. Four brands to consider from are Integra, Jamo, Harman Kardon and Cambridge Audio.

A-BUS/READY enables direct connection to either a single A-BUS power module for one extra zone or to an A-BUS hub for multiple rooms in an extra zone.
The A-BUS/READY outlet supplies audio, status and infrared data connection. Some A-BUS/READY receivers can power one power module independently while others require a separate power supply.

Compare these features with other whole house music systems and you’ll see why A-BUS multi-room audio technology is truly revolutionary, making your decision simple!

• Single Dataline cable to each room
• Connects to any HiFi system
• Minimal signal loss – true audiophile sound quality
• Local amplification within individual rooms (no centralized amplification)
• No need to run a special electrical supply to each room
• Power modules are built into wall controls or loudspeakers
• Low voltage and energy efficient
• Option of remote controlled volume for each individual room
• The A-BUS ‘Learning’ remote can replace your existing remotes
• Option of listening to multiple sources simultaneously
• Infrared sensor has a range of up to 20 meters
• Australian designed and engineered patented technology


quoted from the 'The Confusion of Power' - ChanneVision blog, September 18, 2012

When it comes to discussing the power output of a distributed audio system, it is important to understand what is being discussed. Is the question appropriate for answer the enquirer is asking for? For example: The Mini Cooper is a popular new vehicle, as is the new Ford F-150 pick-up. Have you ever heard the topic of payload mentioned when discussing the Mini? Conversely have you ever heard of the topic of handling being discussed when talking about the Ford? And it would be very wrong to compare them simple by quoting the power output of their motors.

When the topic of power and distributed audio comes up we also need to look at this one specification and ask how relevant it is? Power is not a good guide because too many other factors come into play. This is particularly the case when comparing A-BUS against centrally powered systems and to quote its power output as a quality preference can be very misleading. So the question must be asked; ‘Should it be quoted at all?’

A-BUS was developed to eliminate the signal losses that are inherent in centrally powered systems and these losses are not just output power. A-BUS delivers cleaner, un-amplified signal with no losses, all the way into the individual room or zone and amplifies it there. The right question to ask is, “Which approach delivers a cleaner signal?”

The Limitations of Speaker Cables
In the seventies when we started experimenting with speaker cable we found that the cable could make big differences in the sonic performance of a Hi-Fi system. But despite what we heard with our ears the technical elite refused to accept the fact that it made a difference because they could not measure these differences on a piece of paper. Magazines also refused to review them and while a large industry grew up making speaker and interconnect cables, many, most of who were technical, stuck their head into the ground and ignored what was obvious to the average listener. Let’s face it, our ears are the final judge.

With A-BUS it is no different; let your ear be the judge. While all the skeptics want to argue about the power output of A-BUS, those using it in the field are having no trouble. It seems that history is repeating itself most of the critics are the ones that have never heard it for themselves. A-BUS sounds better and it is not because of power. It’s because of delivery of better quality signal to the local rooms or zones.

The Historical View of Power
There are two ways of looking at the power question. One is from a historical point of view. The other is whether it is appropriate to use the power output of a system to judge the quality of a sound system.

In the 1970’s and 1980’s many speaker designers traded speaker efficiency to get improved sound quality. Loudspeakers were being designed where the previously typical 90dB efficiency often got down to 84db. Additionally, crossovers on some speakers that claimed a nominal impedance of 8 ohms magnified the problem by going down to impedances as low as 2 ohms at some frequencies. And what might seem like a simple solution to increase the power output of the amplifier was just not that simple. For example, if you have a 50 watt amplifier rated at 8 ohms, put a 2-ohm load on it and it will want to deliver upwards of 200 watts. The problem is it can’t because the amplifier’s power supply was only designed to deliver 50 watts or there-about. But if the designer increased the size of the power supply, which is quite costly, to handle a difficult 2 ohm load, it was not expensive to increase the power output at the same time. It is like a catch 22 puzzle the real reason for the expansion of power is rarely understood and too difficult to explain to the average consumer. Watts by themselves may not be an accurate way to measure an amplifier’s quality but weighing it can be a good alternative. Good power supplies are rarely light.

In the 1990’s the tables turned, speaker designers had to respond to the limitations of mass market amplifiers that could not deliver the flexibility they required. The average efficiency of speakers has come back up, (ie. many speakers are now ported again and floor standing speakers have largely replaced boxed speakers on stands) and impedance curves in general are not so demanding. It’s a good thing, because the weight of amplifiers has not increased over the last 25 years and rather than putting out 2x power they are now putting out 5x power.

What are the Parameters for Multi-Room Audio?
With multi-room audio we need to re-examine the parameters we are working with and their importance. Is power really our problem? No, most in wall speakers are around 90dB efficient, their impedance curves are not an area of concern and they are generally 8ohms.

So what are the different parameters we should be looking at? Let’s go back to speaker cables a parameter that many so often ignore but one that has a lot more relevance when it comes to distributed audio. We are no longer talking about ten foot runs and very real problems start to come into play such as capacitance and inductance as we get into longer runs around the home. You are not only increasing your resistance in the line, the further you go, the effectiveness of the insulation or isolation between cores also diminishes. So the power you think you start with does not necessarily go down the line and probably more importantly, the sound quality is irreparably diminished. And when we consider that most homes are being wired with no more than standard 16/4 we are really consigning our consumers to mediocrity at best without a remedy available. There are other parameters such as damping factor which few people know about or understand, that become much more relevant with long cable runs reducing the quality of sound. (Damping factor controls the extended movement of the diaphragm to stop it from acting like flabby spring.)

Once you install long runs of speaker cable in a wall there is no panacea, you cannot correct what is lost going down the line. And when you try to counter the problem with better speakers then there is little that can be achieved because the losses have already occurred down the line. OK you can install better speaker cables but it is really like putting a band-aid on what is essentially a festering sore. All too often in these situations people are turning the volume up to compensate for the lack of clarity. The result is irritating music that no one listens to for long period and after the newness wears off these systems are rarely used.

Why is A-BUS such a Great Solution?
If you understand the problems the speaker cables present to a sound system whether they be short or long the best solution is to get the amplifier as close as possible to the speaker. Running long runs of line level signal offer little trouble in comparison, here our problem is mainly hum and noise. Category 5 cable offers a real solution here as an audio signal places little demand on it in compared to the real purpose it was designed for.

When you have installed an A-BUS system and tested it, you quickly find it does not lack power either. It is not a weakness of the system as there is plenty of good clean power available for today’s efficient “In Wall” loudspeakers. Is the amount of volume important in the bedroom bathroom or kitchen? In most cases the answer is no! The clarity of sound on the other hand is important. Around the home you are looking to complement your activities, the sound needs to be relaxing and entertaining not invasive or irritating. So perhaps the real test is not how good the sound is at high volume it is how good the sound is at low volume.

However, if you are looking for high volume outdoors, for instance, it is never an easy problem but it is an area where A-BUS has a lot of advantages. With an A-BUS pre-wire we are sending a high quality signal to every room, if there is a requirement for high power (a kids rumpus room could be another example), A-BUS becomes the line level signal source for a local amplifier. A-BUS power modules can also work with sub-woofers to increase the dynamics of the music. But most importantly wherever you are in the house the signal source with A-BUS is at its best.

So, when someone questions the power output of a distributed audio system, think carefully about why the question is asked before you respond with an answer which is really misleading. It is really better not to quote the output at all.
